Engine Mount: Service and Repair

Engine Mount Replacement

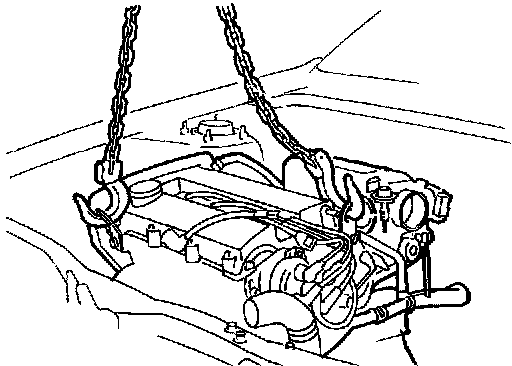

Caution: Support the engine before removing the member. Suspend the engine with a chain block.






1. Remove the engine mount member (ATX/MTX).

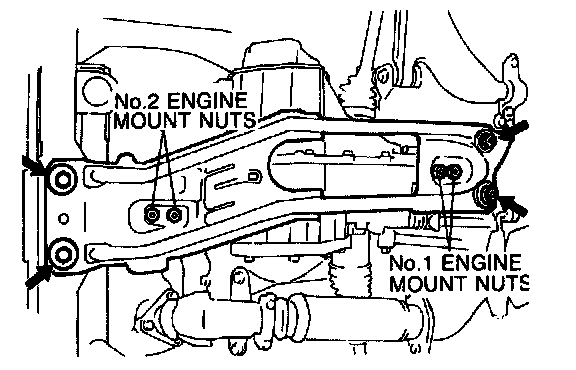

2. Remove the No.1 and No.2 engine mount nuts (ATX/MTX).
3. No.2 engine mount rubber and bracket (ATX).
4. Dynamic Damper.
5. No.3 engine mount rubber.






5. No.4 engine mount rubber and bracket. (MTX/ATX).
