Mazda
>>
1994
>>
Protege L4-1839cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Circuit Diagrams
>>
E-2
E-2

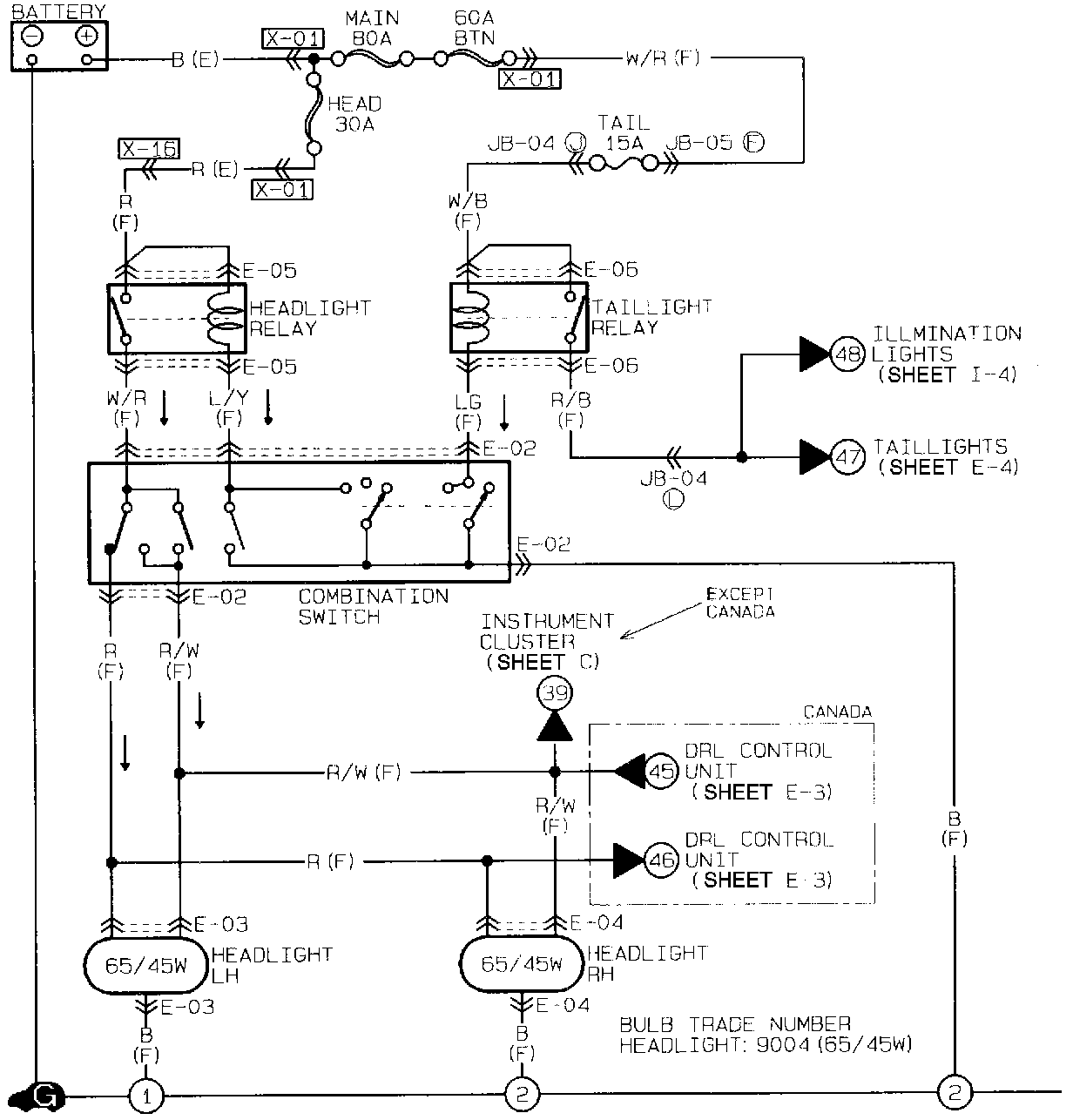

With Cruise Control, Headlights:
