Home >> Mazda >> 1994 >> Protege L4-1839cc 1.8L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Circuit Diagrams >> E-1

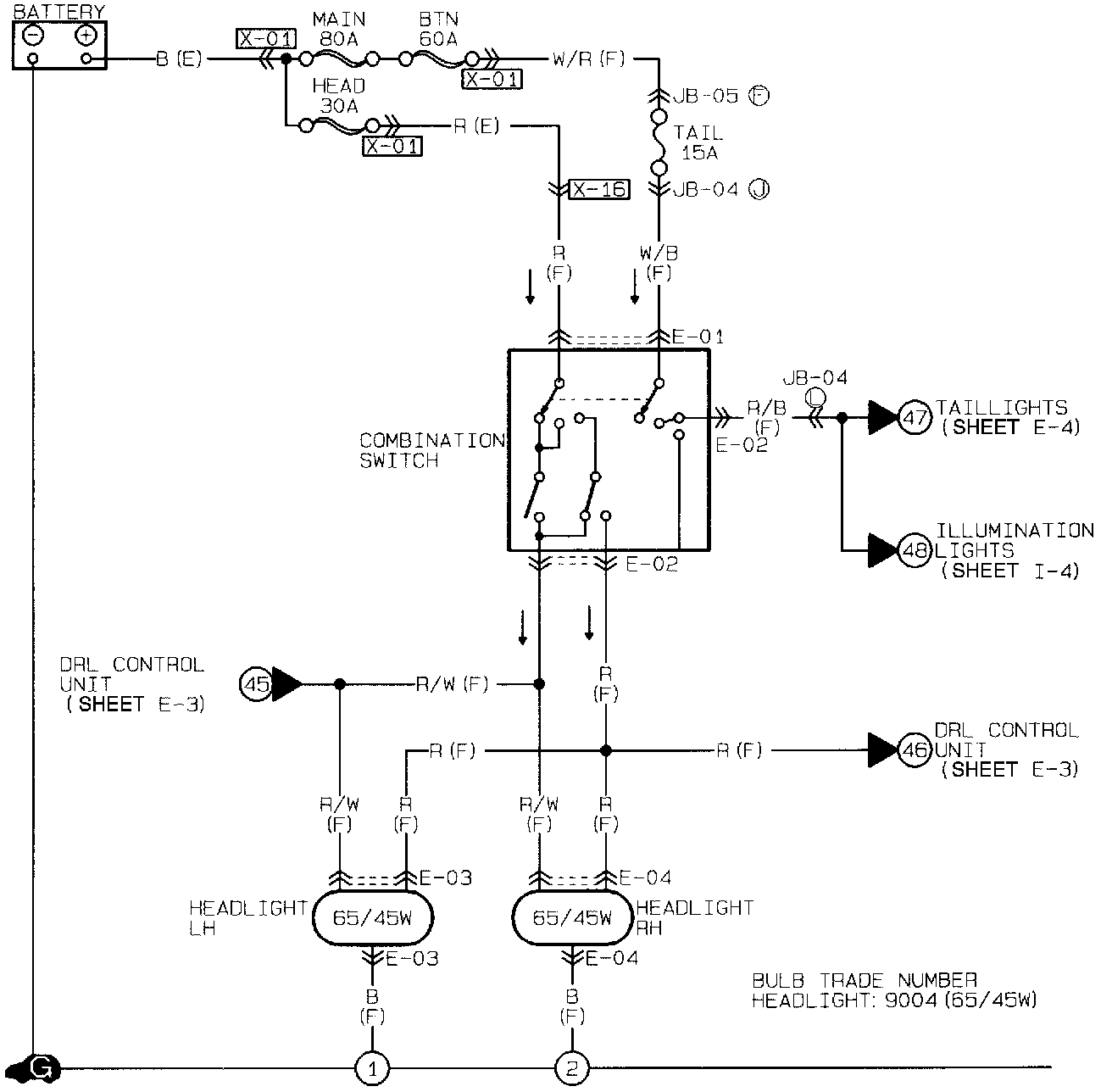

E-1

Without Cruise Control, Headlights:
