Wheel Cylinder: Service and Repair

When disassembling and assembling wheel cylinders refer to Fig. 18 through 20. If a problem is found in wheel cylinder body or piston replace wheel cylinder as an assembly.

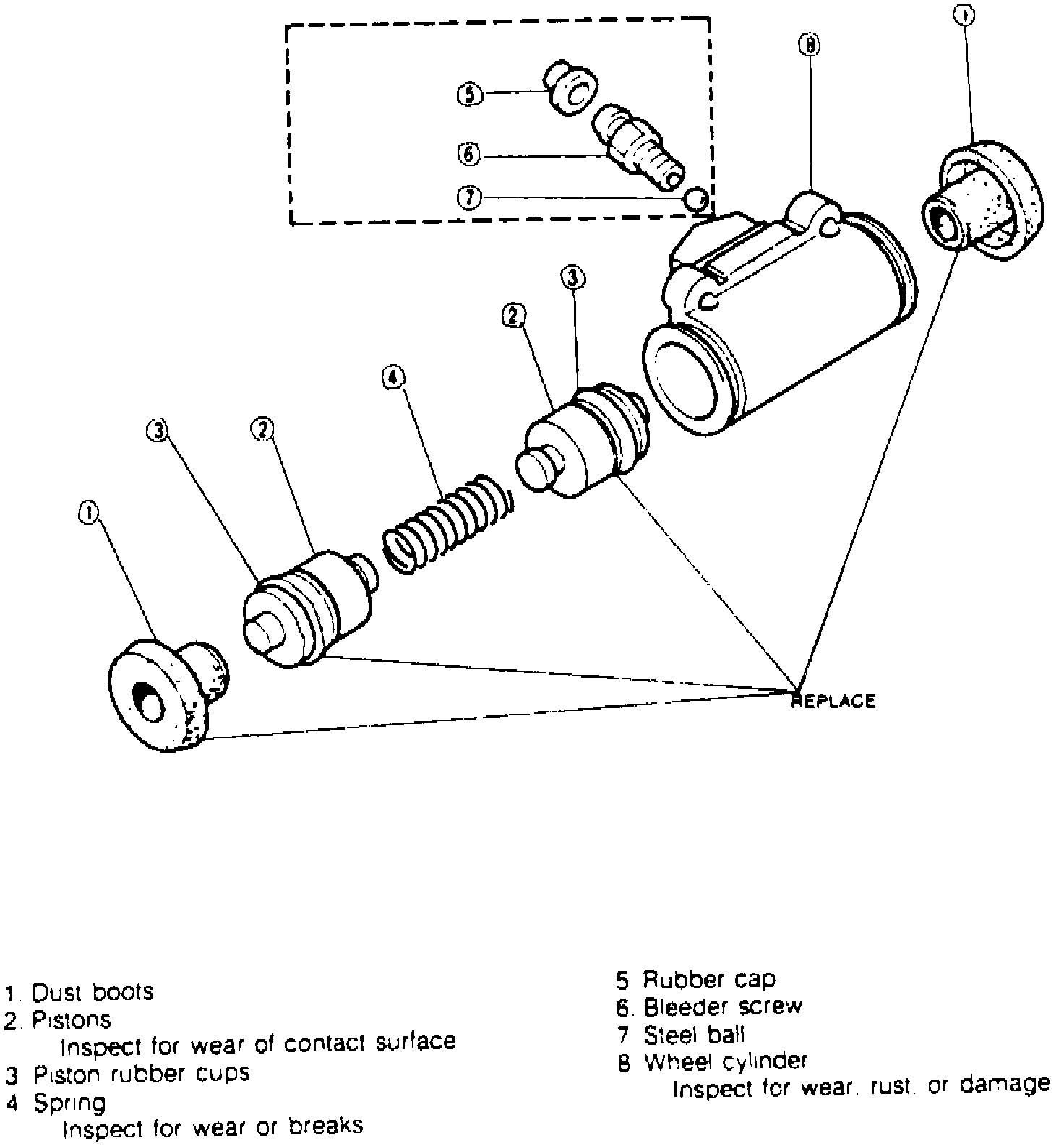

Fig. 18 Exploded View Of Wheel Cylinder:

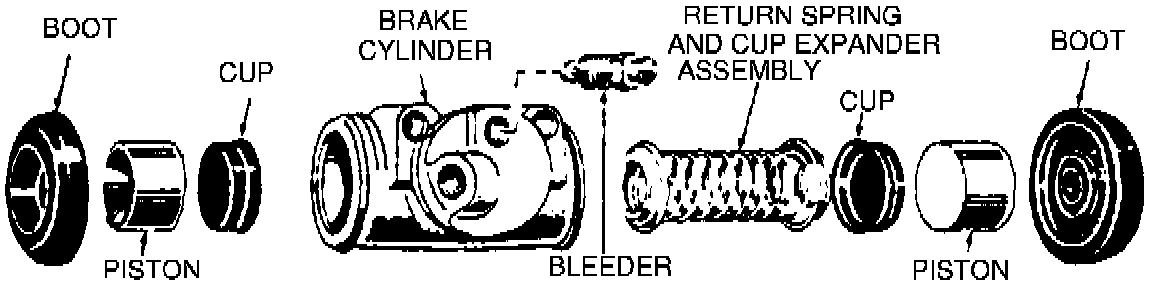

Fig. 19 Exploded View Of Wheel Cylinder:

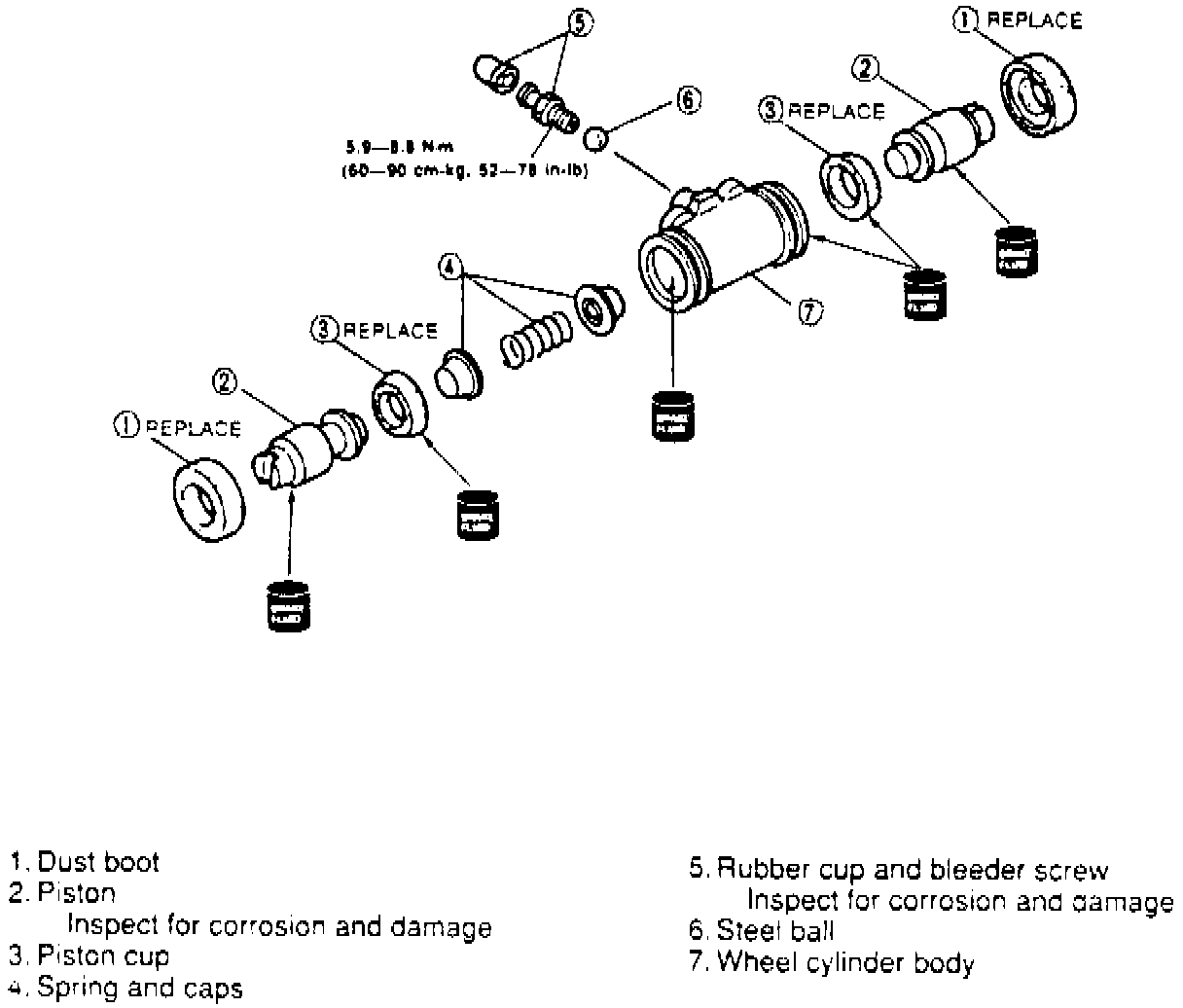

Fig. 20 Exploded View Of Wheel Cylinder:
