DTC 15
>>
Federal
>>
Automatic Transaxle
Automatic Transaxle

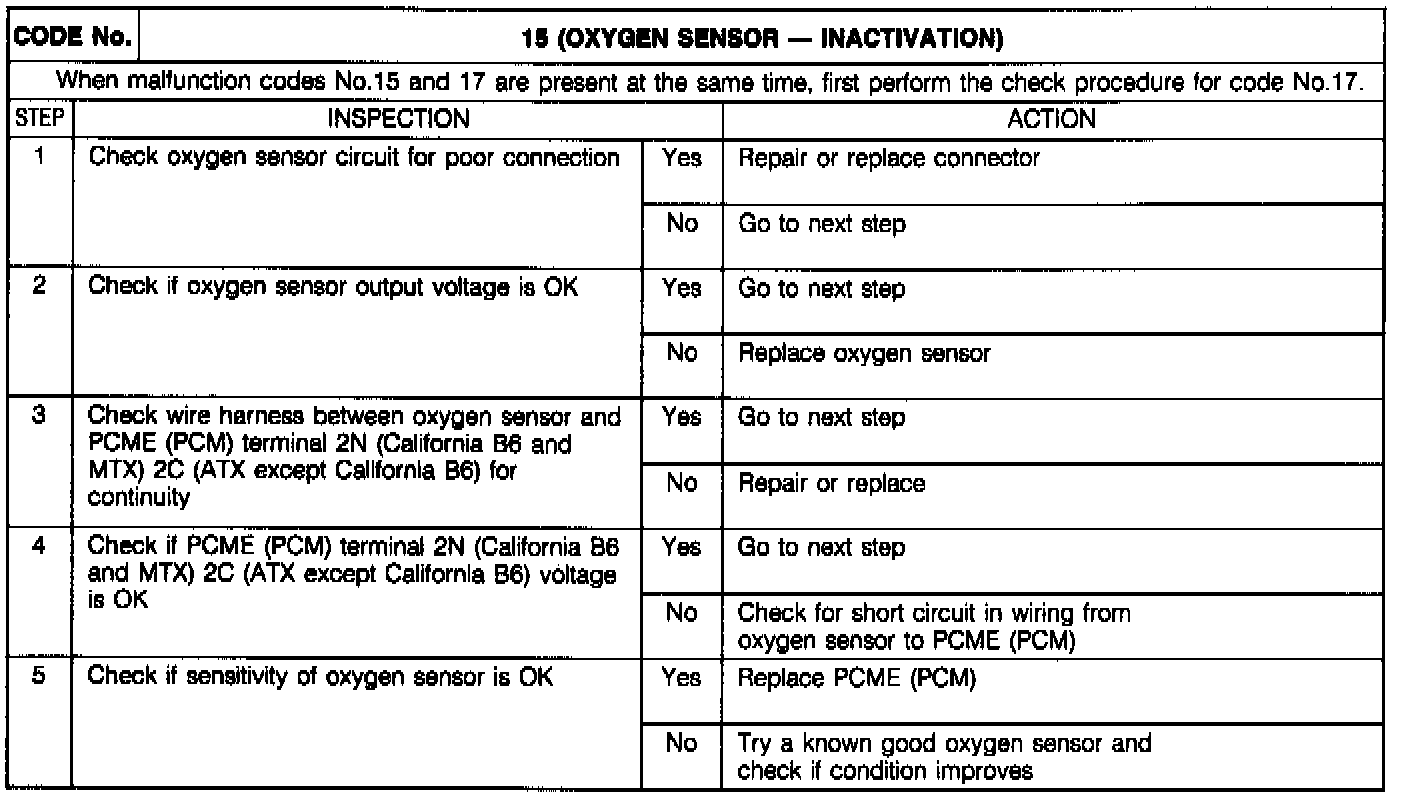

DIAGNOSTIC CHART
Code 15 - Oxygen Sensor (Inactivation):
CIRCUIT DIAGRAM
Code 15 Circuit Diagram (ATX Except California B6):
