DTC 10
>>
Federal
>>
Automatic Transaxle
Automatic Transaxle

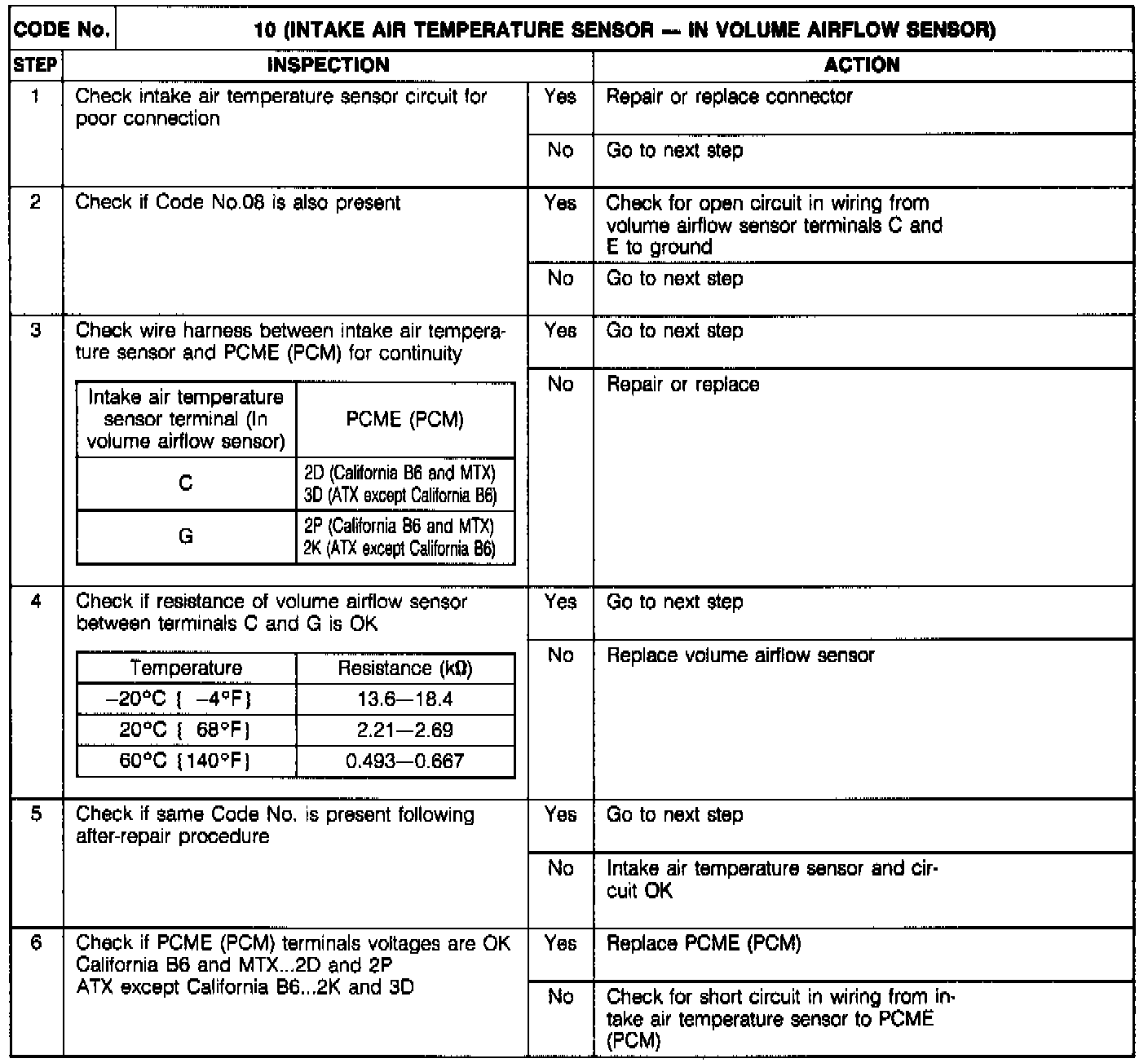

DIAGNOSTIC CHART
Code 10 - Intake Air Temp. Sensor (Airflow Sensor):

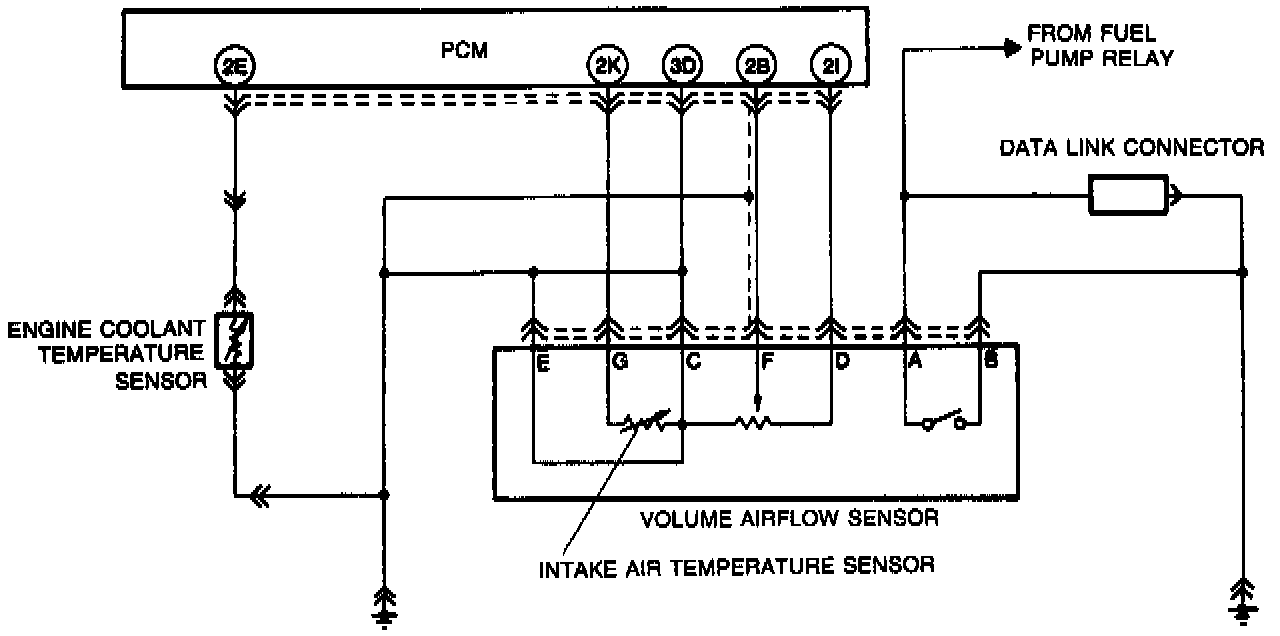

CIRCUIT DIAGRAM
Code 10 Circuit Diagram (ATX Except California B6):
