DTC 09
>>
Federal
>>
Automatic Transaxle
Automatic Transaxle

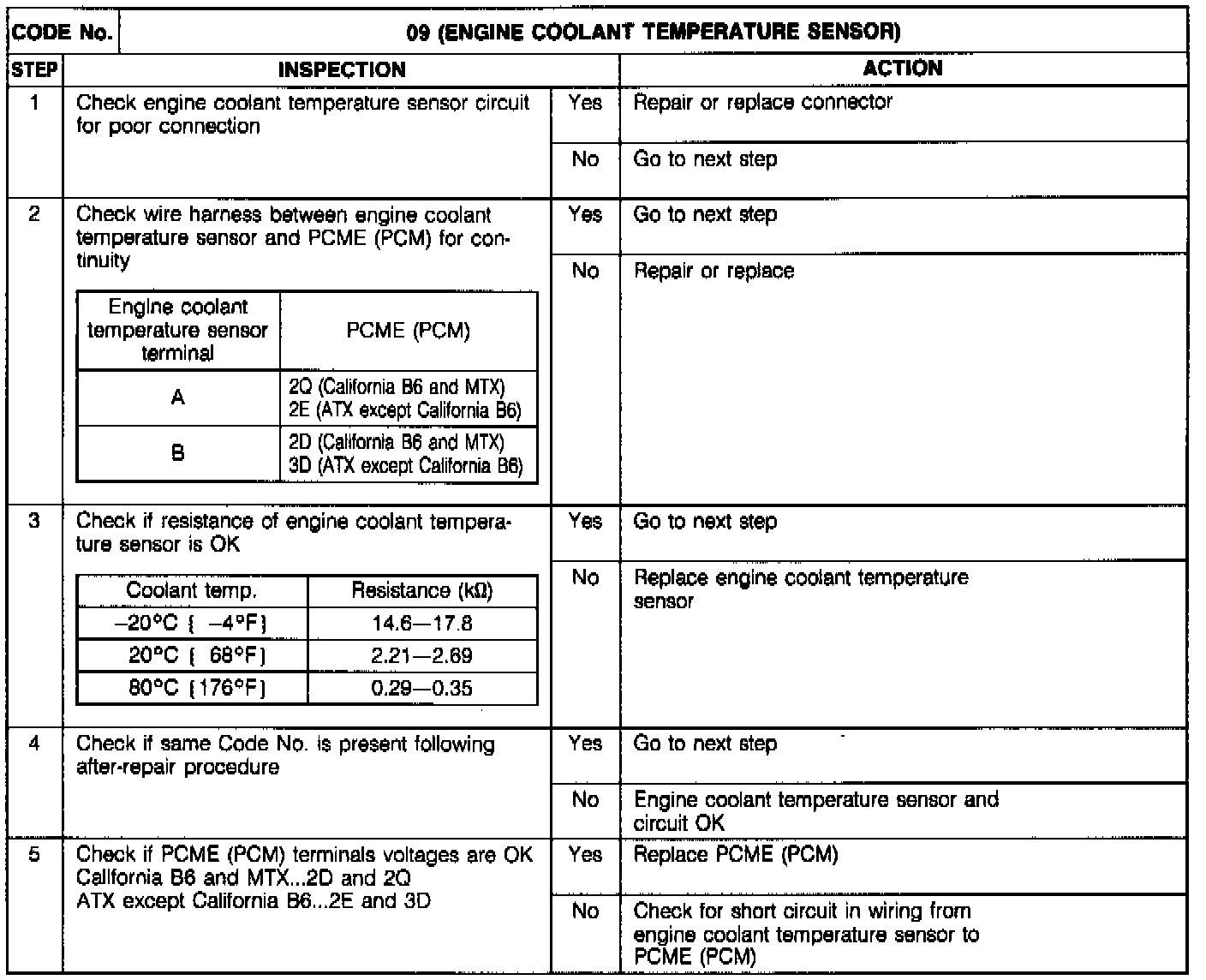

DIAGNOSTIC CHART
Code 09 - Engine Coolant Temp. Sensor:

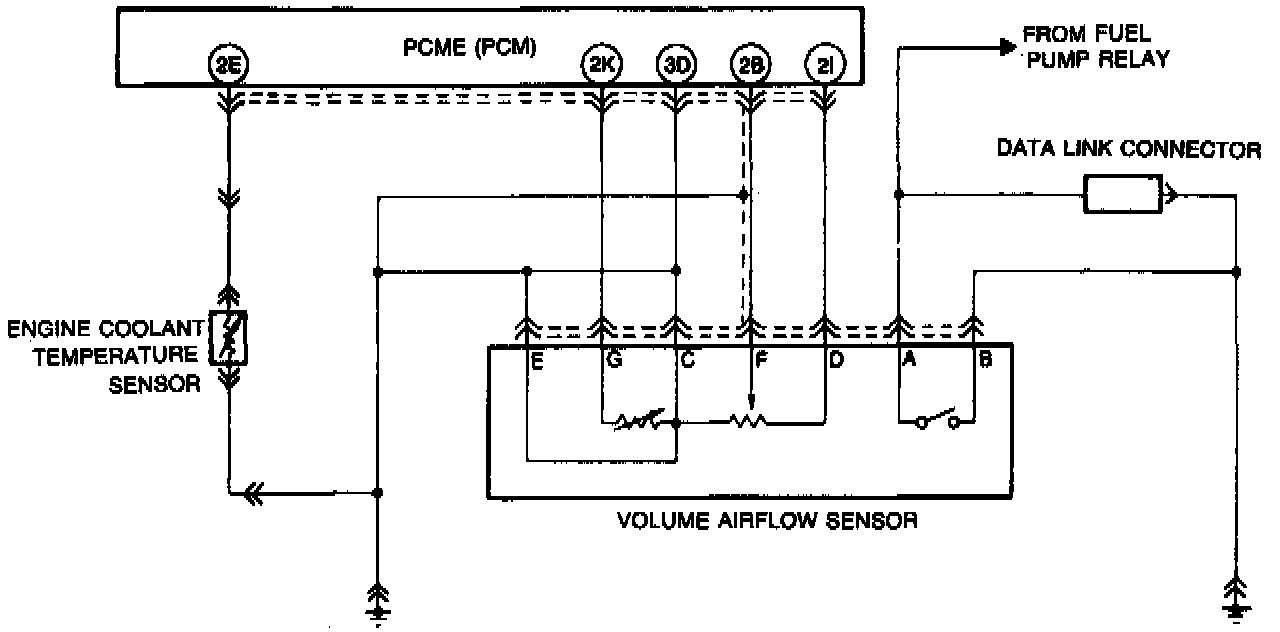

CIRCUIT DIAGRAM
Circuit Diagram (ATX Except California B6):
