DTC 08
>>
Federal
>>
Automatic Transaxle
Automatic Transaxle

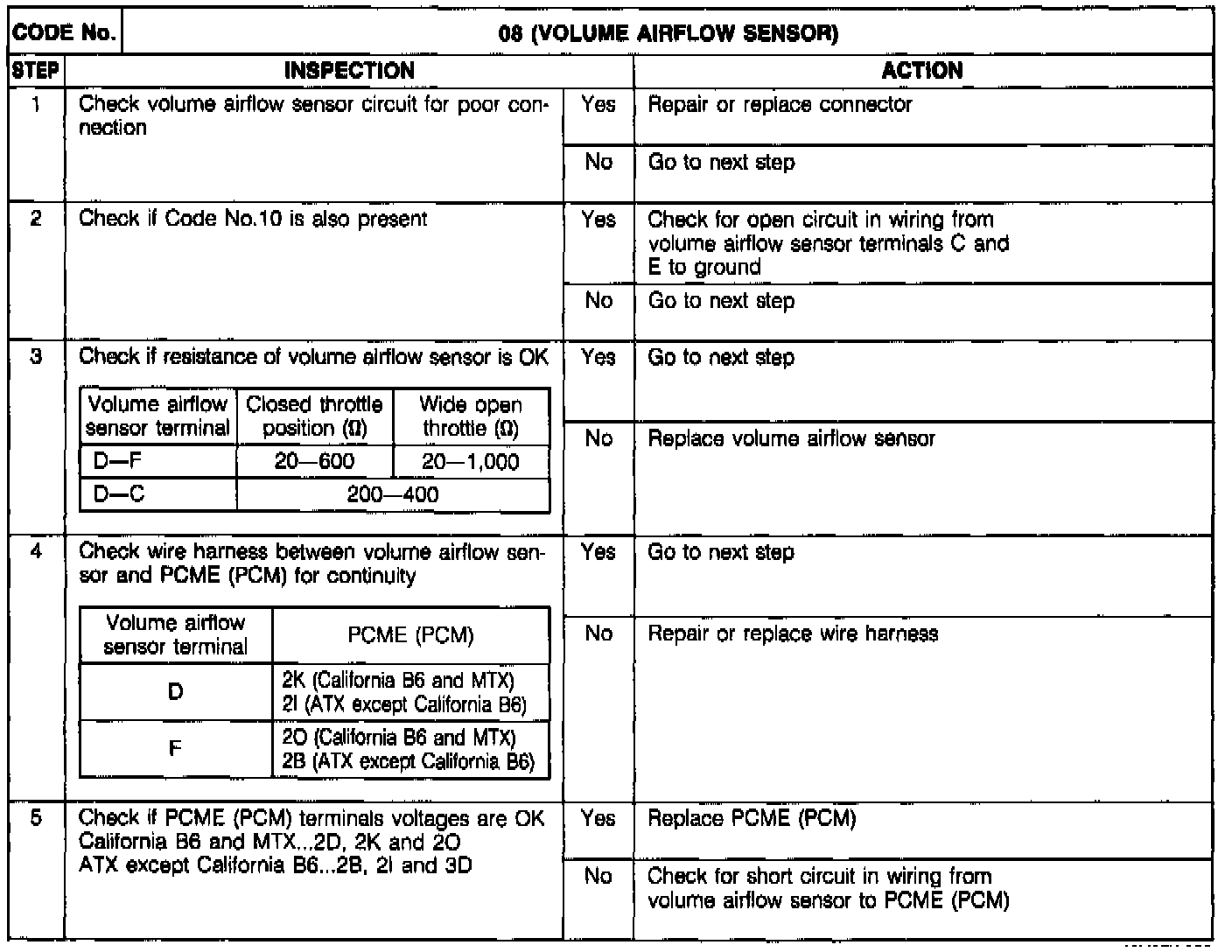

DIAGNOSTIC CHART
Code 08 - Volume Airflow Sensor:
CIRCUIT DIAGRAM
Circuit Diagram (ATX Except California B6):
