Bearing Cover Assembly
BEARING COVER ASSEMBLYPreparation

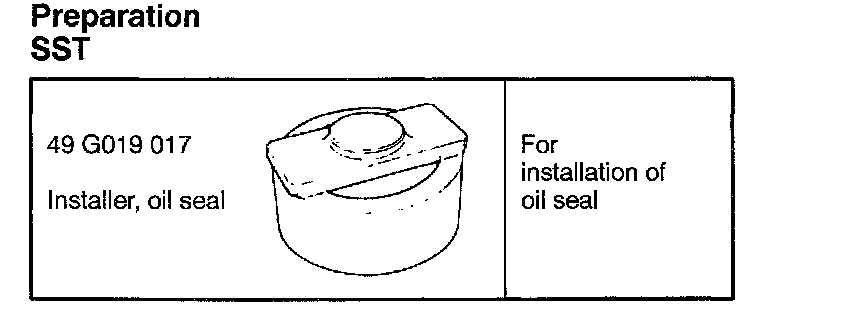

SST
Disassembly / Assembly

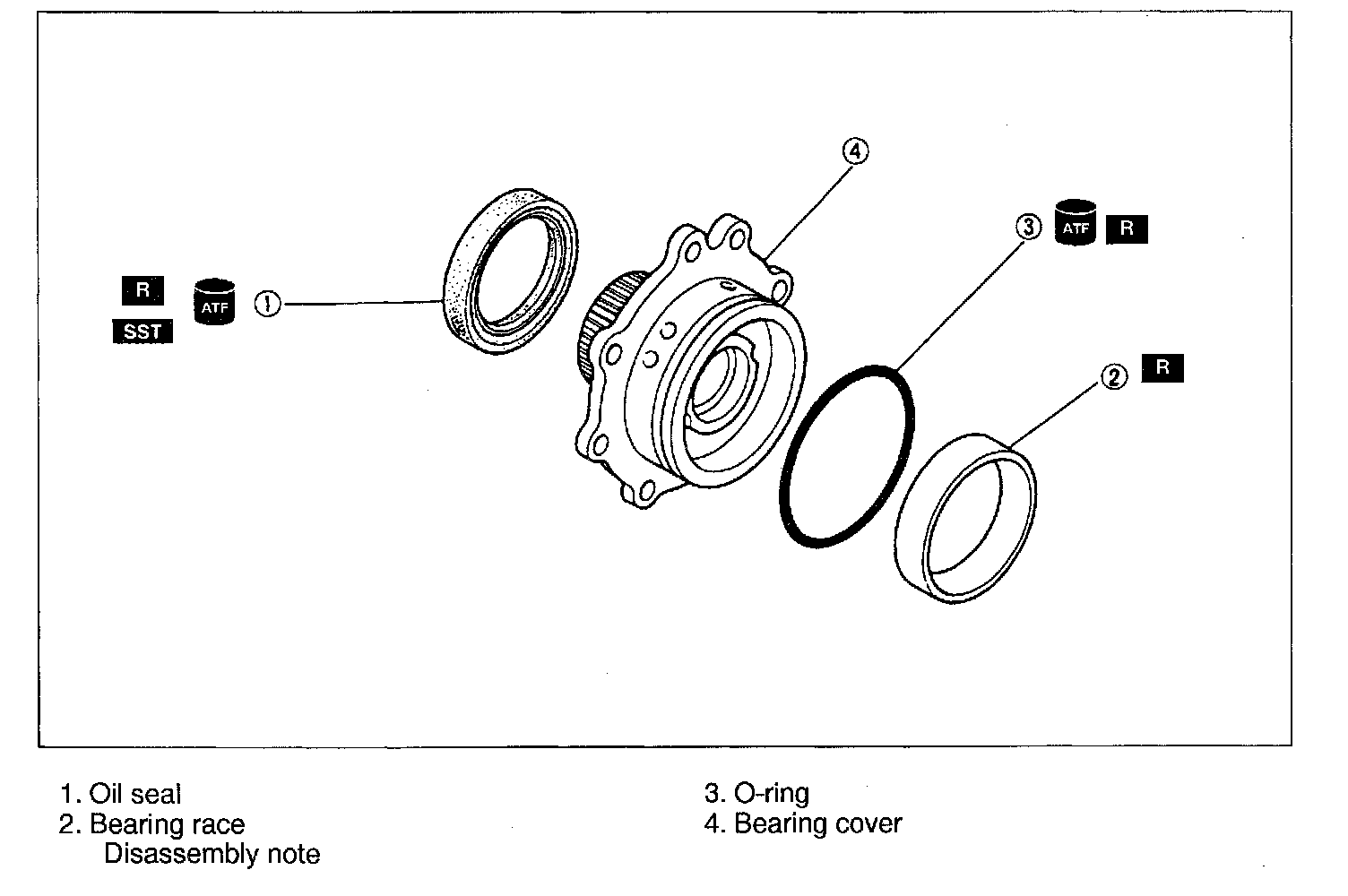

1. Disassemble in the order shown in the figure, referring to Disassembly note.
2. Assemble in the reverse order of disassembly, referring to Assembly procedure.
Bearing Cover Assembly:
Disassembly note

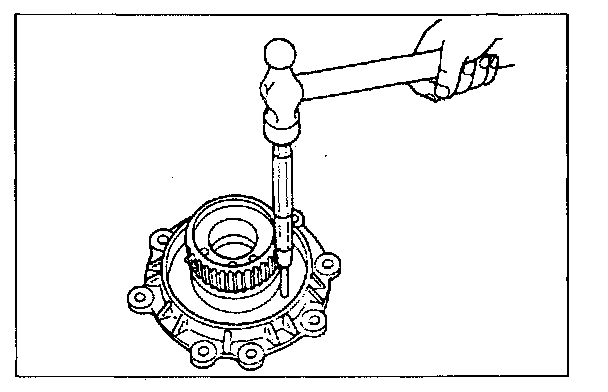

Bearing race Remove the bearing race by using a pin punch and a hammer.
Assembly procedure
Bearing race
1. Apply ATF to the new O-ring and install it to bearing cover.
O-ring inner diameter: 82.9 mm (3.264 in)

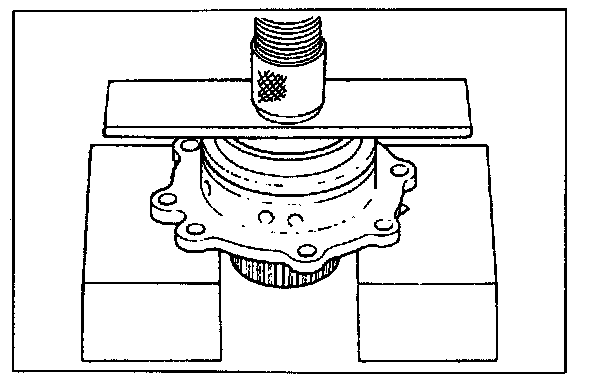

2. Press the new bearing race into the bearing cover.
Oil seal

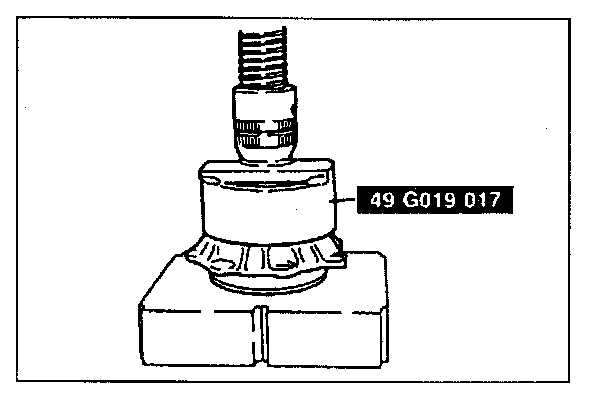

Press the new oil seal into the bearing cover by using the SST
