Trailing Arm: Service and Repair

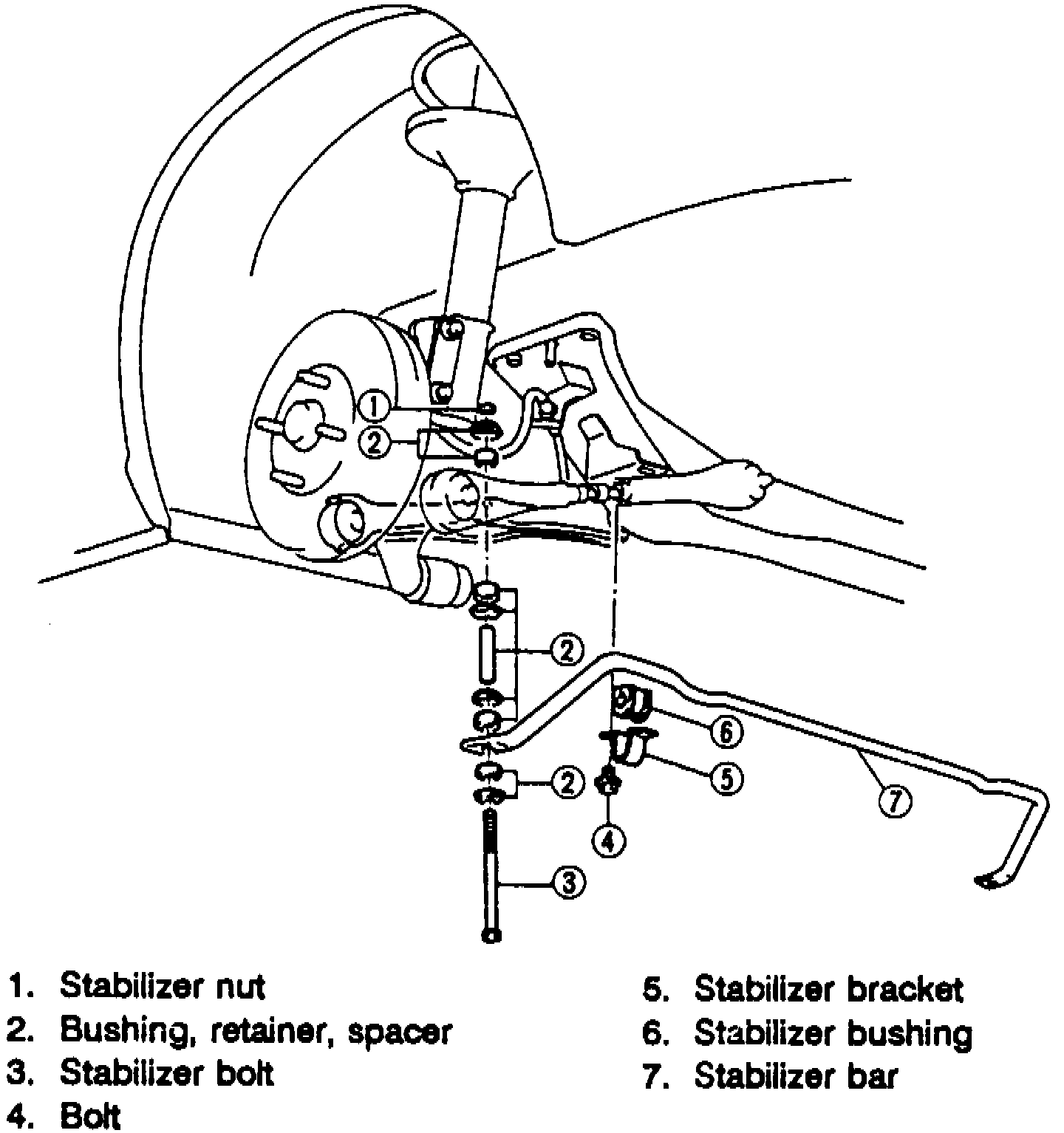

Fig. 9 Lateral Link & Training Link:

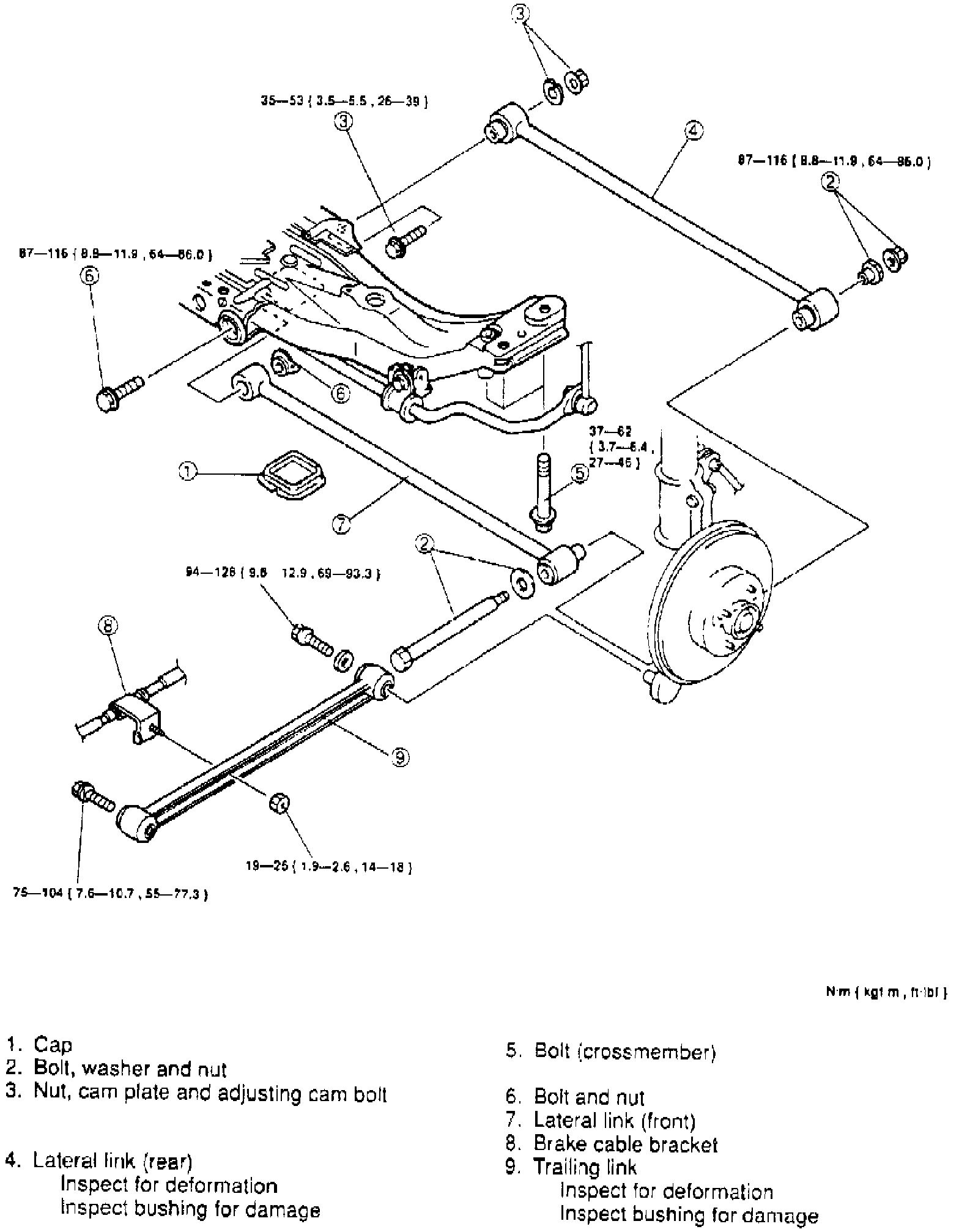

Fig. 10 Lateral Link & Trailing Link Replacement:

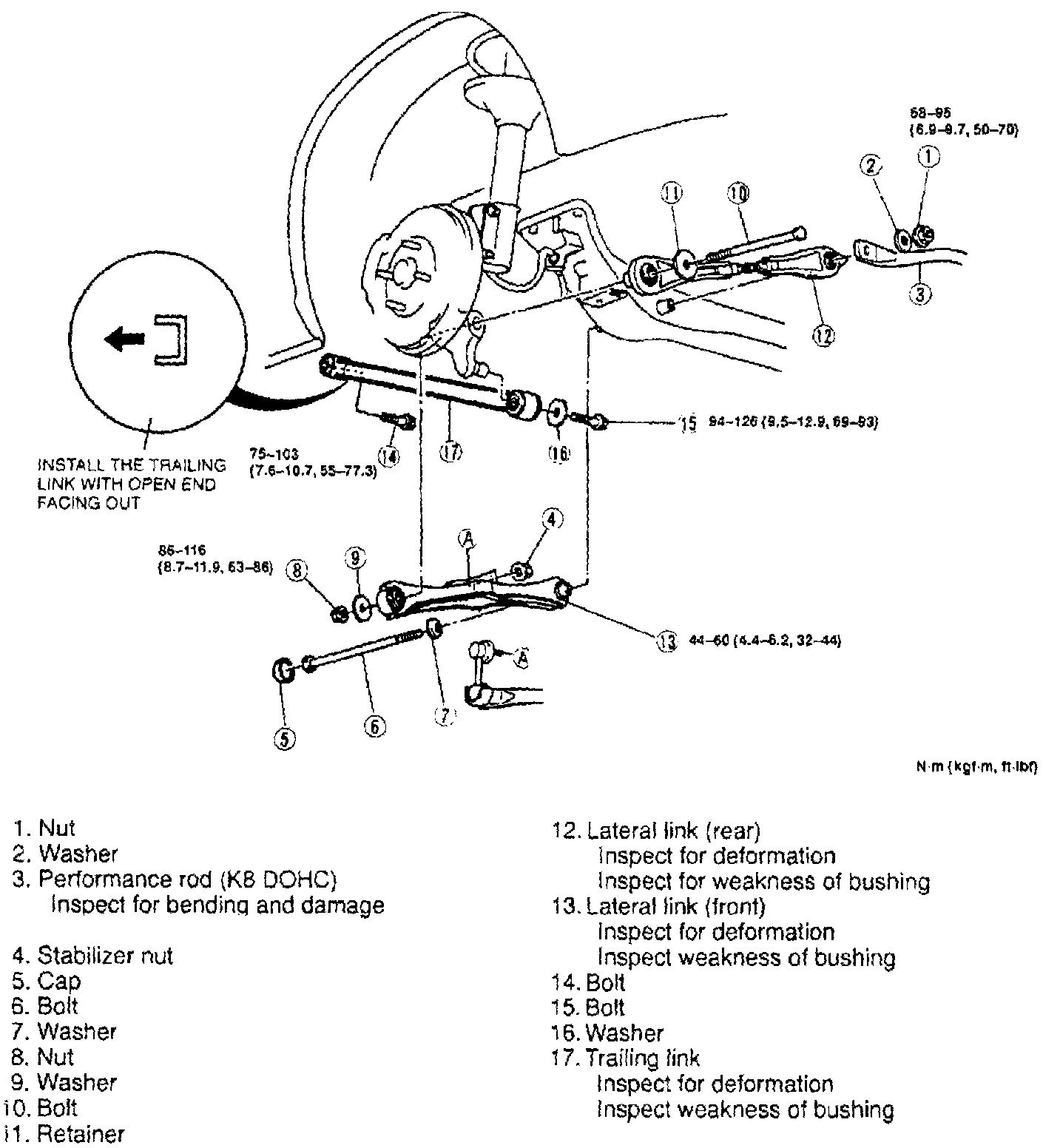

Fig. 11 Lateral Link & Trailing Link Replacement:

The lateral link must be removed before the trailing link.
1. Raise and support rear of vehicle, then remove rear wheels.
2. Remove lateral link and trailing link in numbered sequence, Figs. 9 through 11.
3. Install lateral link and trailing link reversing numbered sequence, Figs. 9 through 11, noting the following:
a. On 1993 - 94 models, tighten stabilizer nuts until 0.64 - 0.72 inch is exposed at end of bolt.
b. On 1995 MX-3 models, measure and adjust rear wheel alignment as necessary.
