Variable Induction System: Testing and Inspection

VICS System Operation Check:

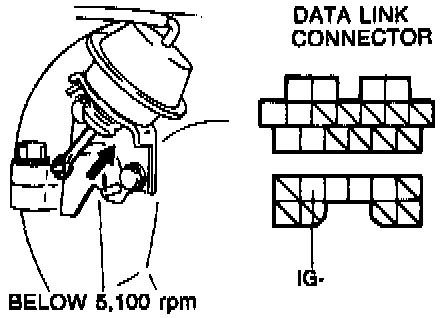

1. Connect tachometer to "IG-" terminal of data link connector.
2. Start engine and run at idle.
3. Verify that shutter valve actuator rod is pulled inward.
4. Gradually increase engine speed and verify that rod is extended when speed reaches 5100 rpm.
