Water Pump: Service and Repair

1. Remove timing belt as outlined under Timing Belt, Replace.
2. Remove water inlet and bypass pipes.

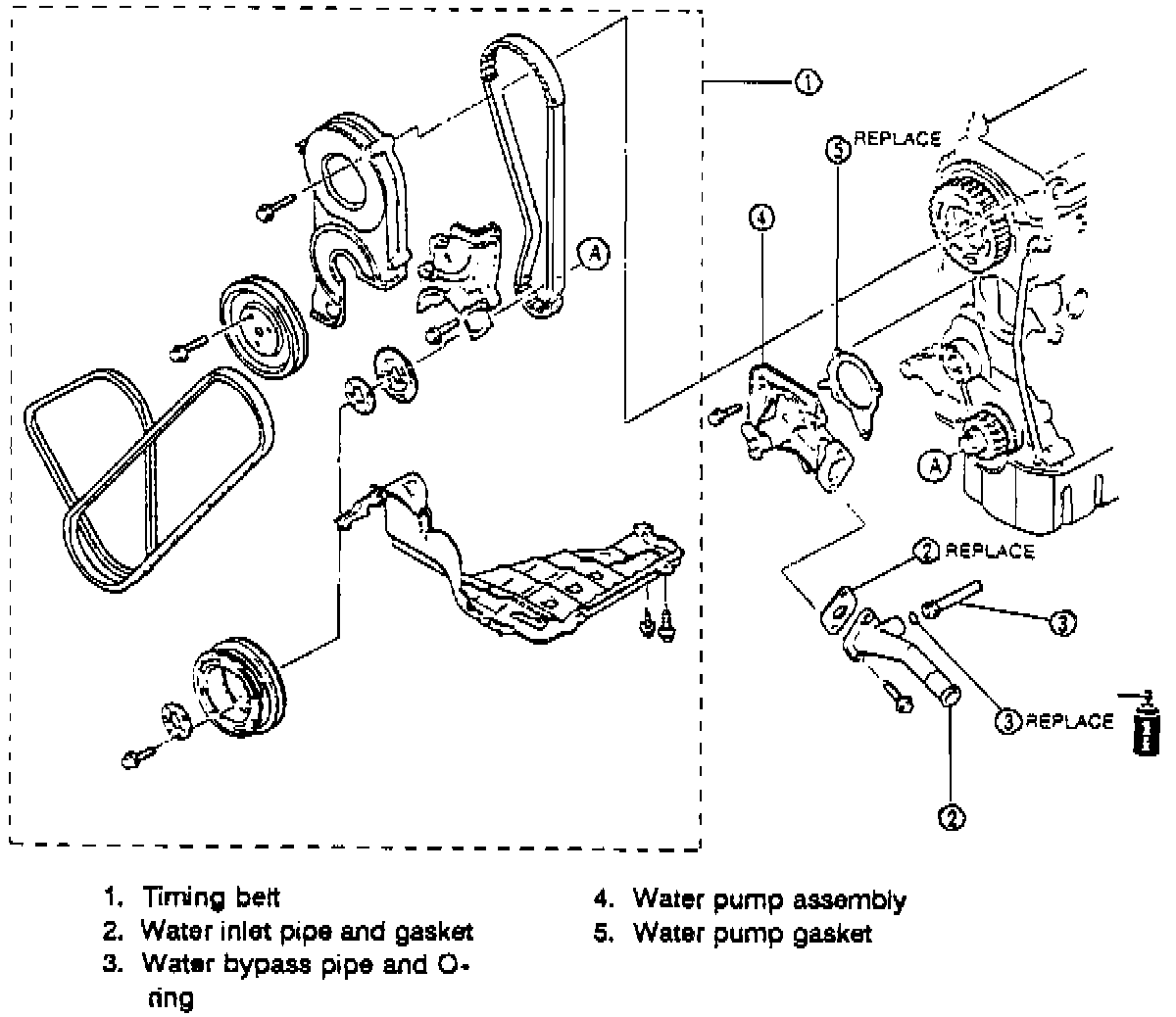

Fig. 84 Water Pump Replacement:

B6 SOHC/BP SOHC

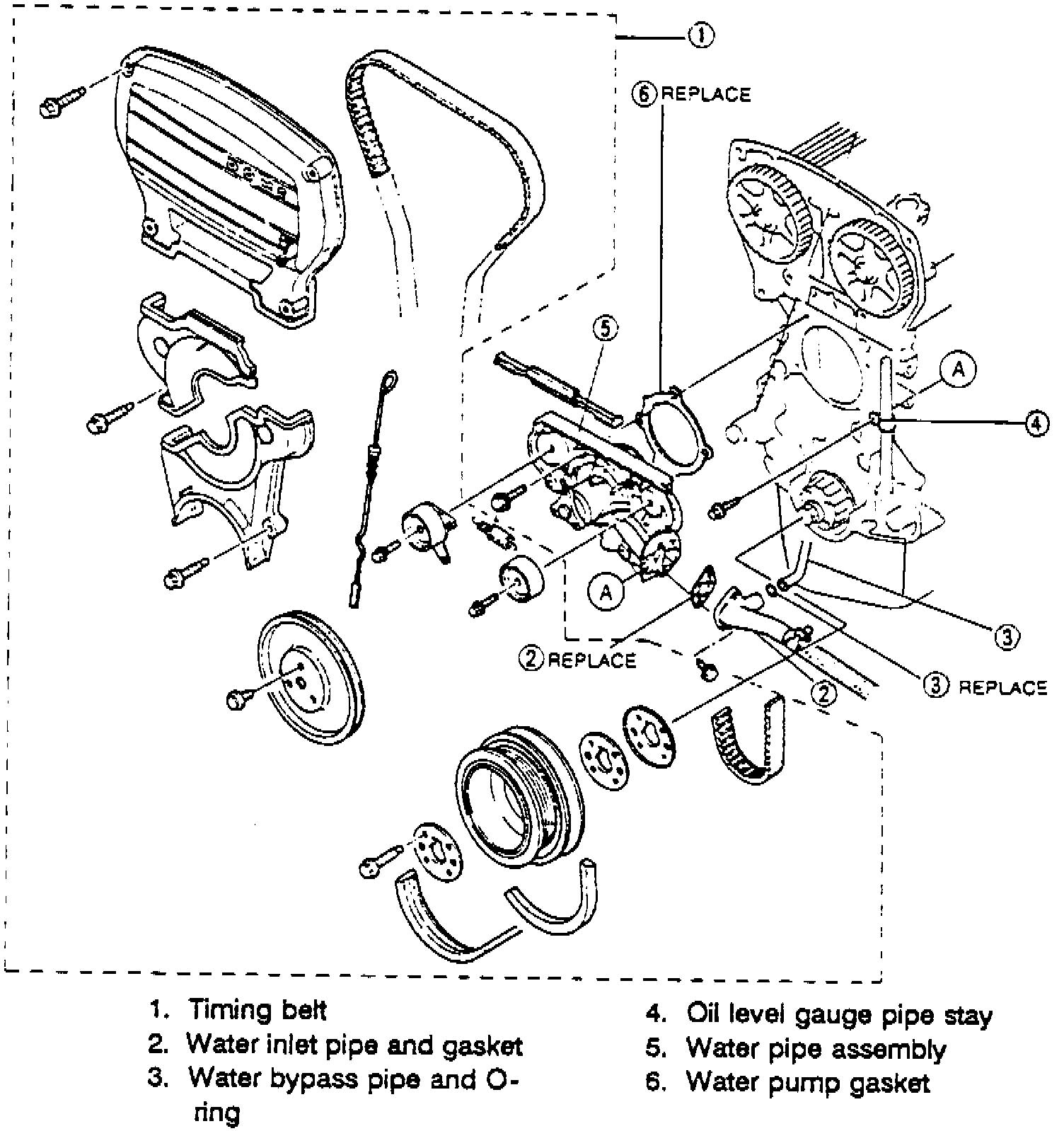

Fig. 85 Water Pump Replacement:

BP DOHC

3. Remove water pump mounting bolts, then water pump, Figs. 84 and 85.
4. Reverse procedure to install. Tighten mounting bolts to specifications.
