Protege L4-1839cc 1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Circuit Diagrams
>>
F-3
F-3

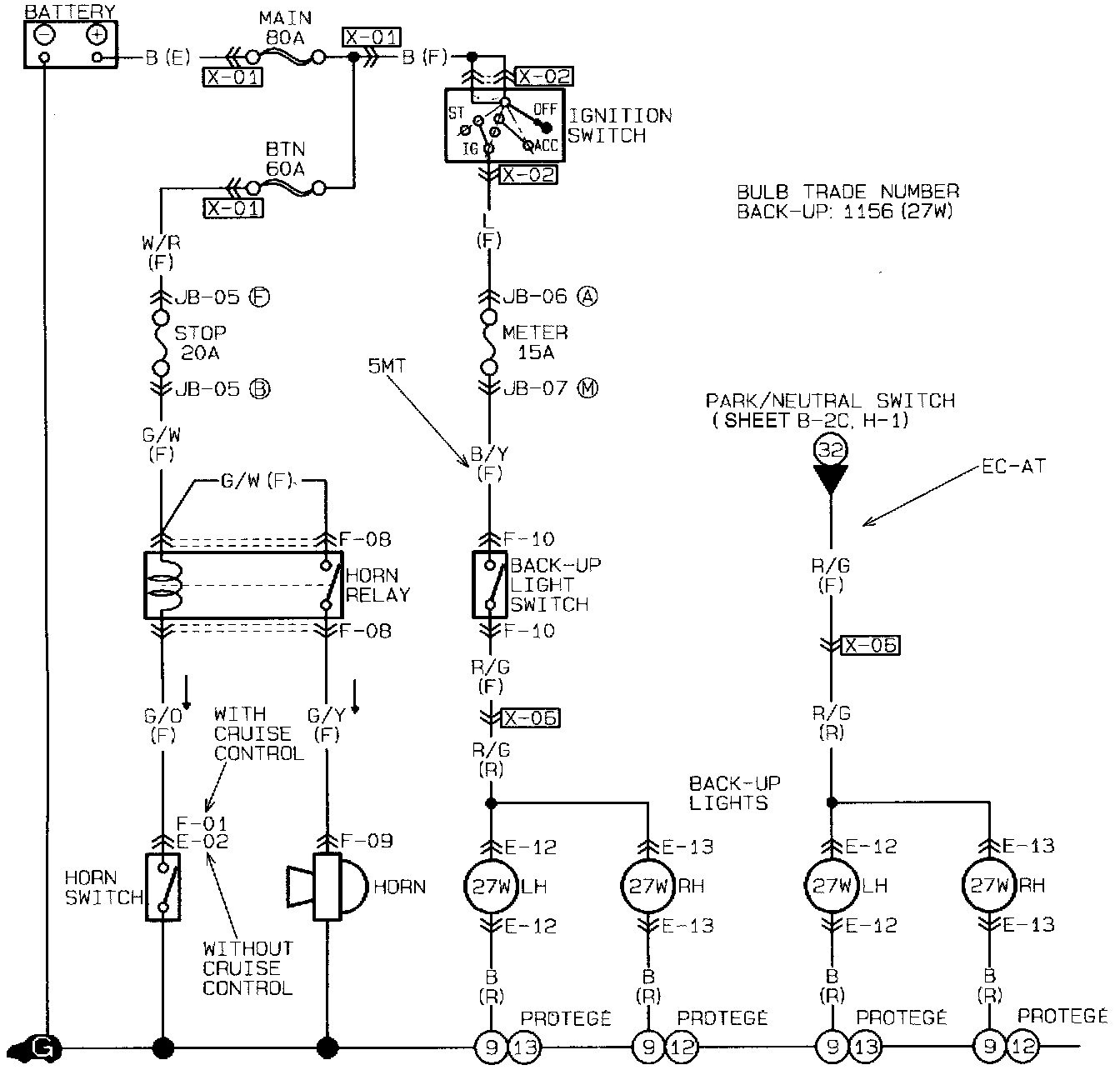

Horn, Back-Up Lights:
