Disassembly/Assembly

1. Remove brake fluid from reservoir after removal of master cylinder.
2. Refer to Fig. 14 through 16 for master cylinder disassembly.

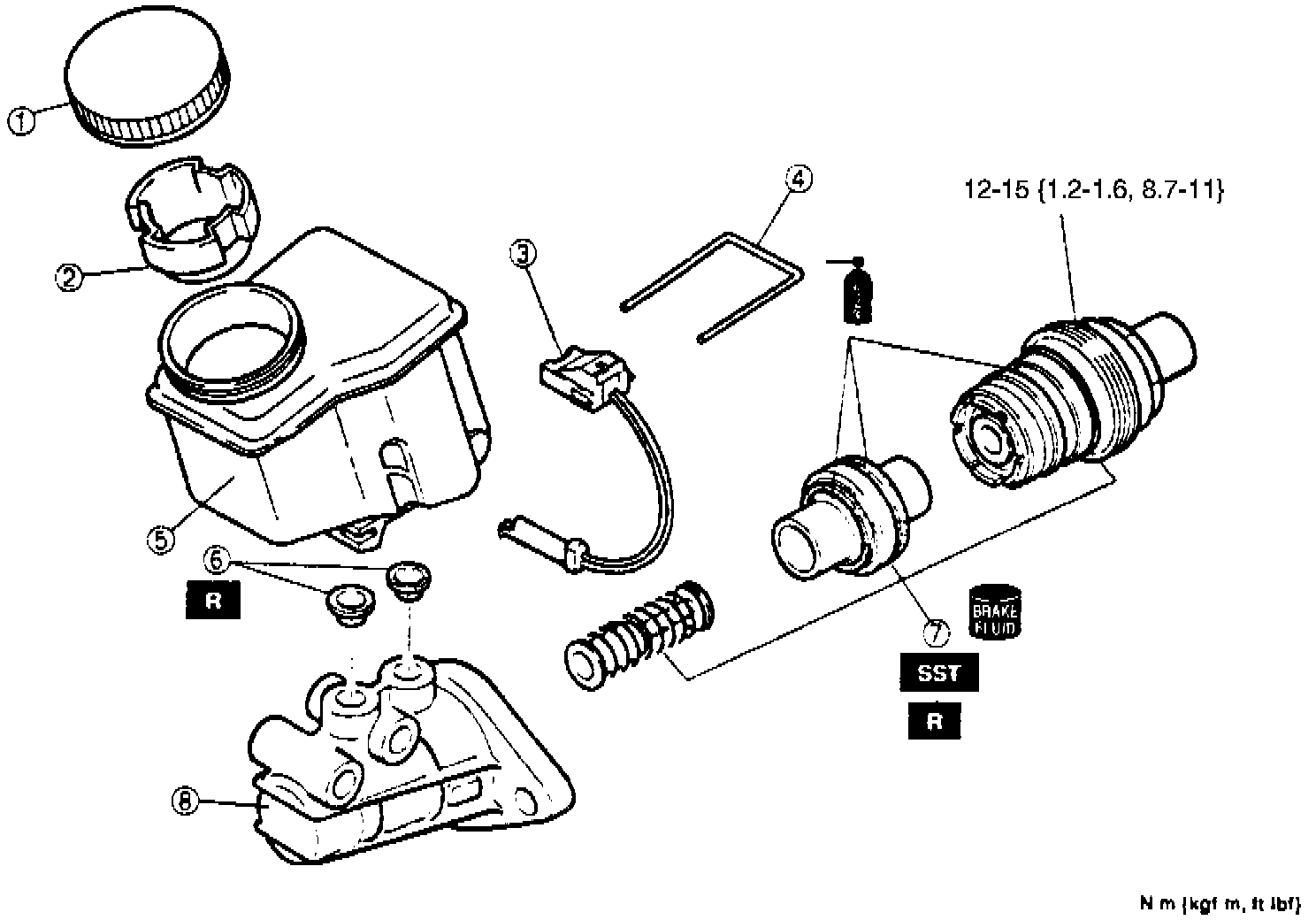

Fig. 14 Exploded View Of Master Cylinder:

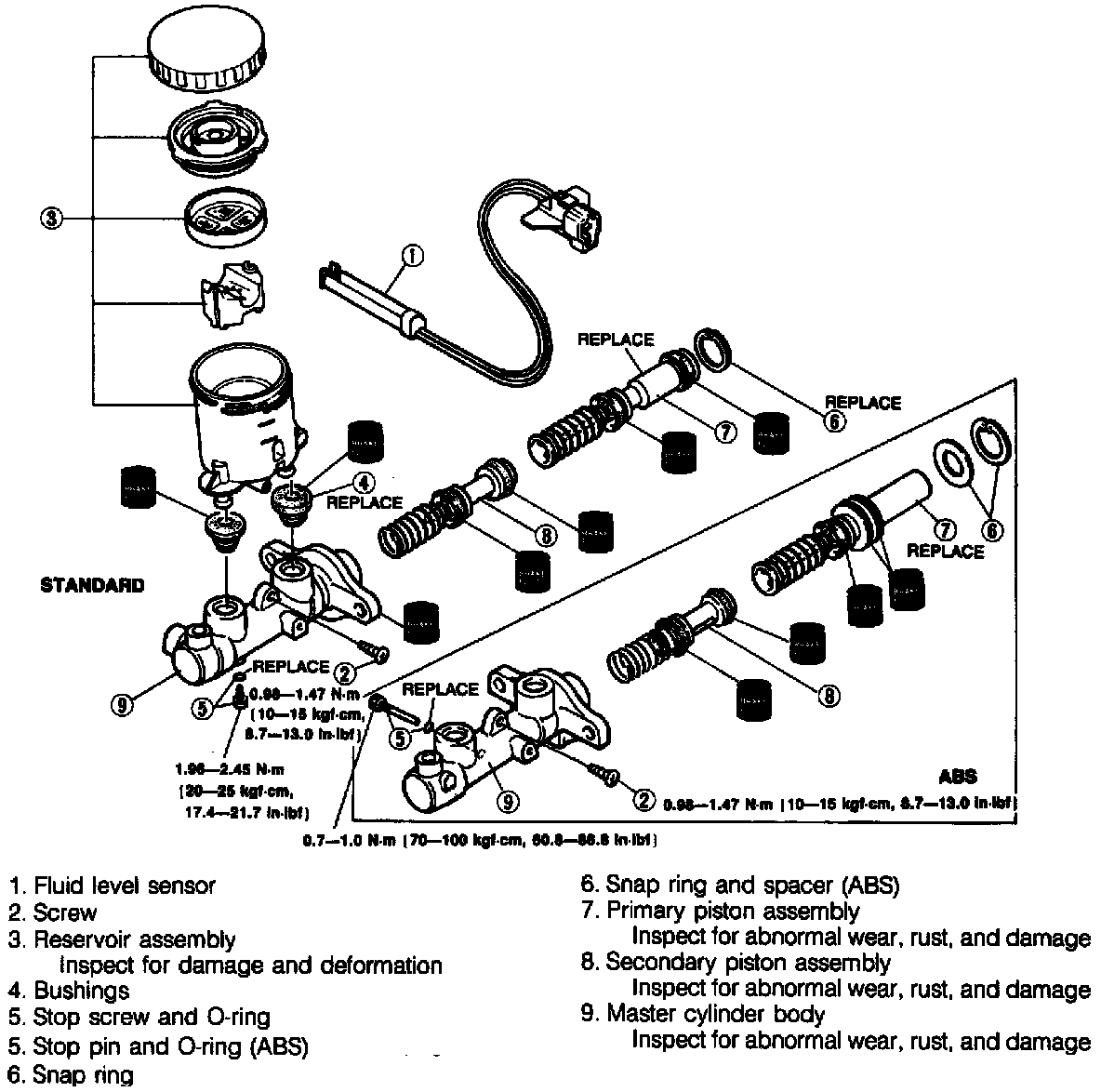

Fig. 15 Exploded View Of Master Cylinder:

Fig. 16 Exploded View Of Master Cylinder:

3. Visually inspect all parts and repair or replace any faulty parts.
4. Reverse procedure to assemble.
