DTC 41
>>
Automatic Transaxle
Automatic Transaxle

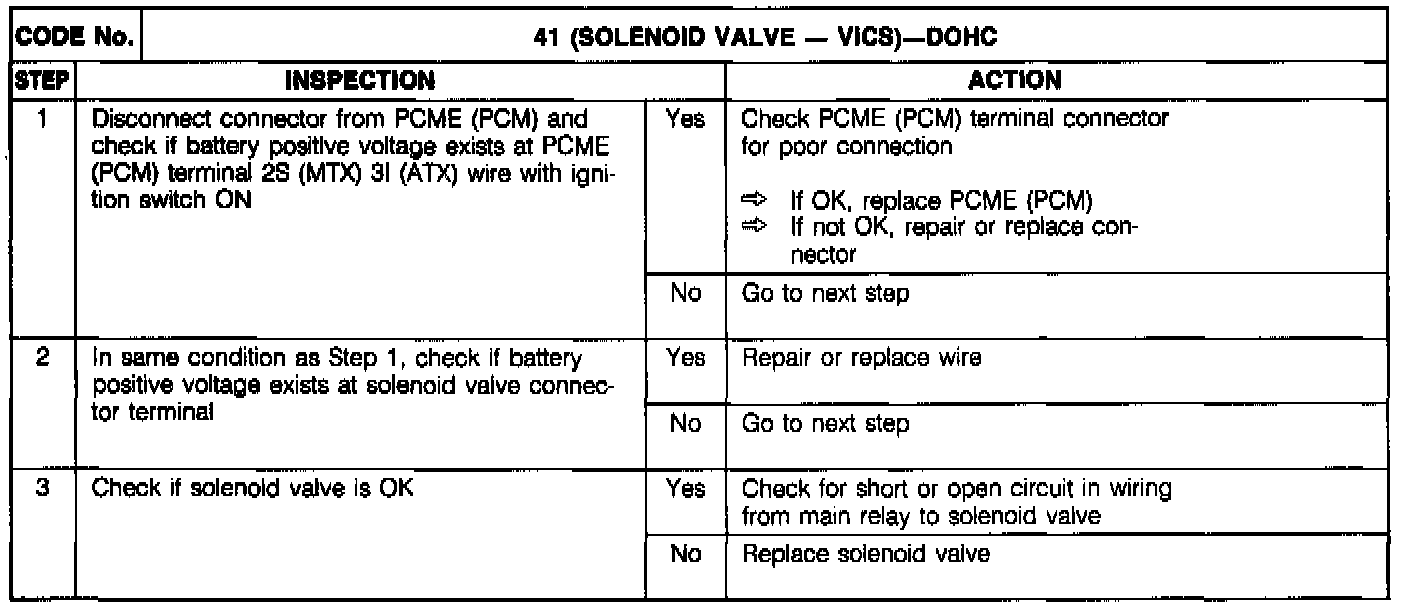

DIAGNOSTIC CHART
Code 41 - VICS Solenoid Valve:

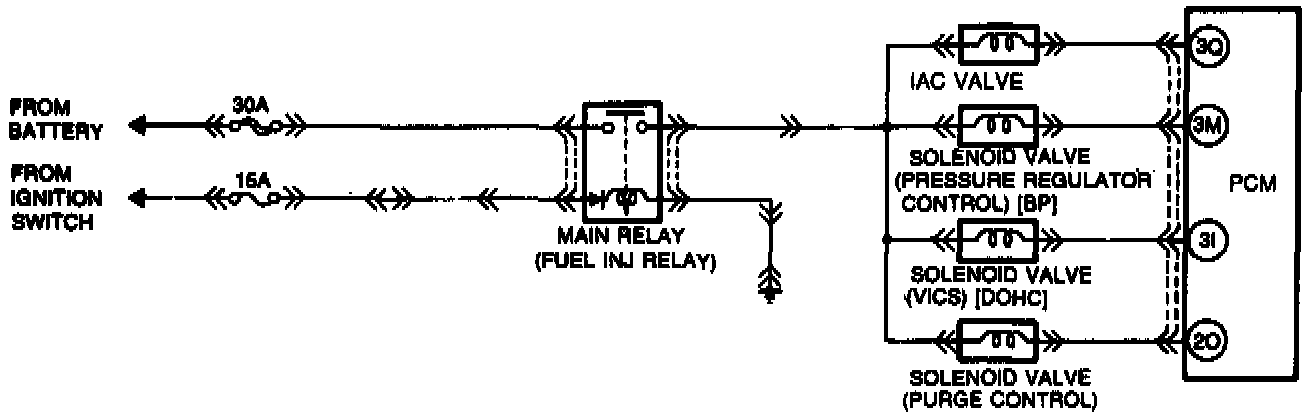

CIRCUIT DIAGRAM
Circuit Diagram (ATX Except California B6):
