A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Powertrain Management
>>
DTC 03
>>
Federal
>>
Automatic Transaxle
Automatic Transaxle

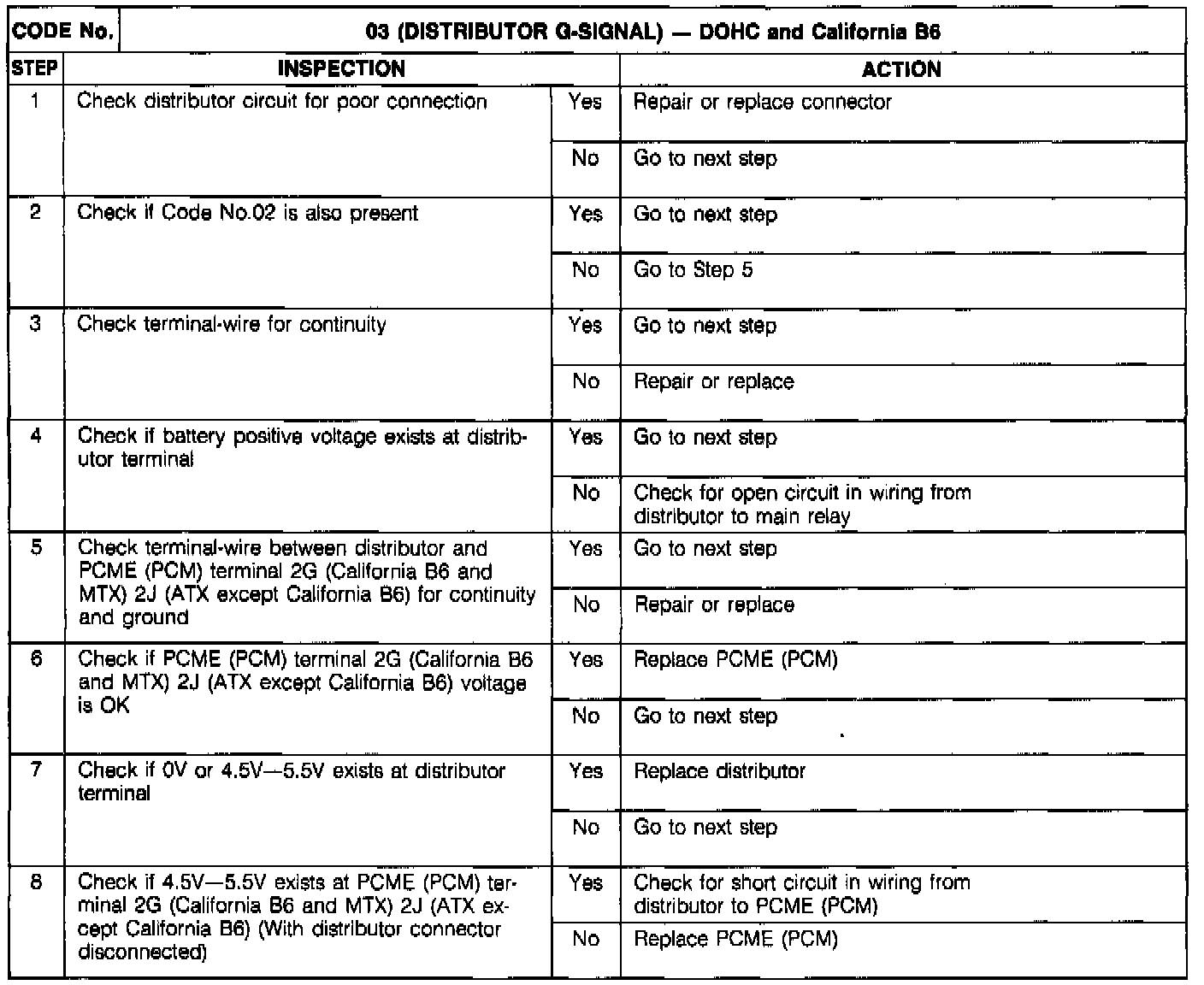

DIAGNOSTIC CHART
Code 03 - Distributor G Signal:

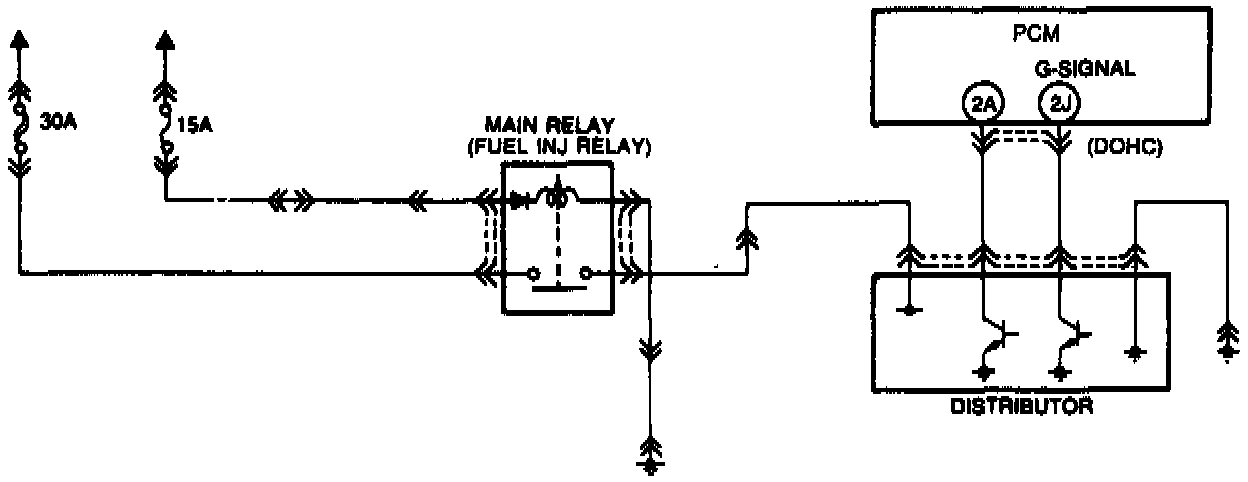

CIRCUIT DIAGRAM
Code 03 Circuit Diagram (ATX Except California B6):
