Volume Test

Injector Volume Check:

WARNING: Be extremely careful when working with fuel. Keep sparks and open flames away.

1. Remove injector/fuel distributor assembly.

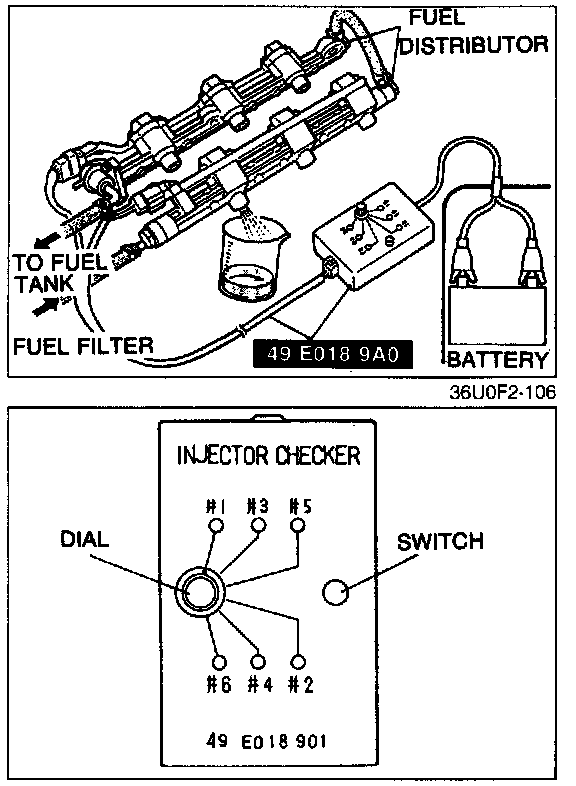

2. Connect SST or equivalent as shown.
3. Measure injection volume of each injector with a graduated container. It should be 2.9 - 3.4 cu in (48 - 56 cc) / 15 seconds.
4. If not as specified, replace injector(s).
