Transmission Cooler: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.

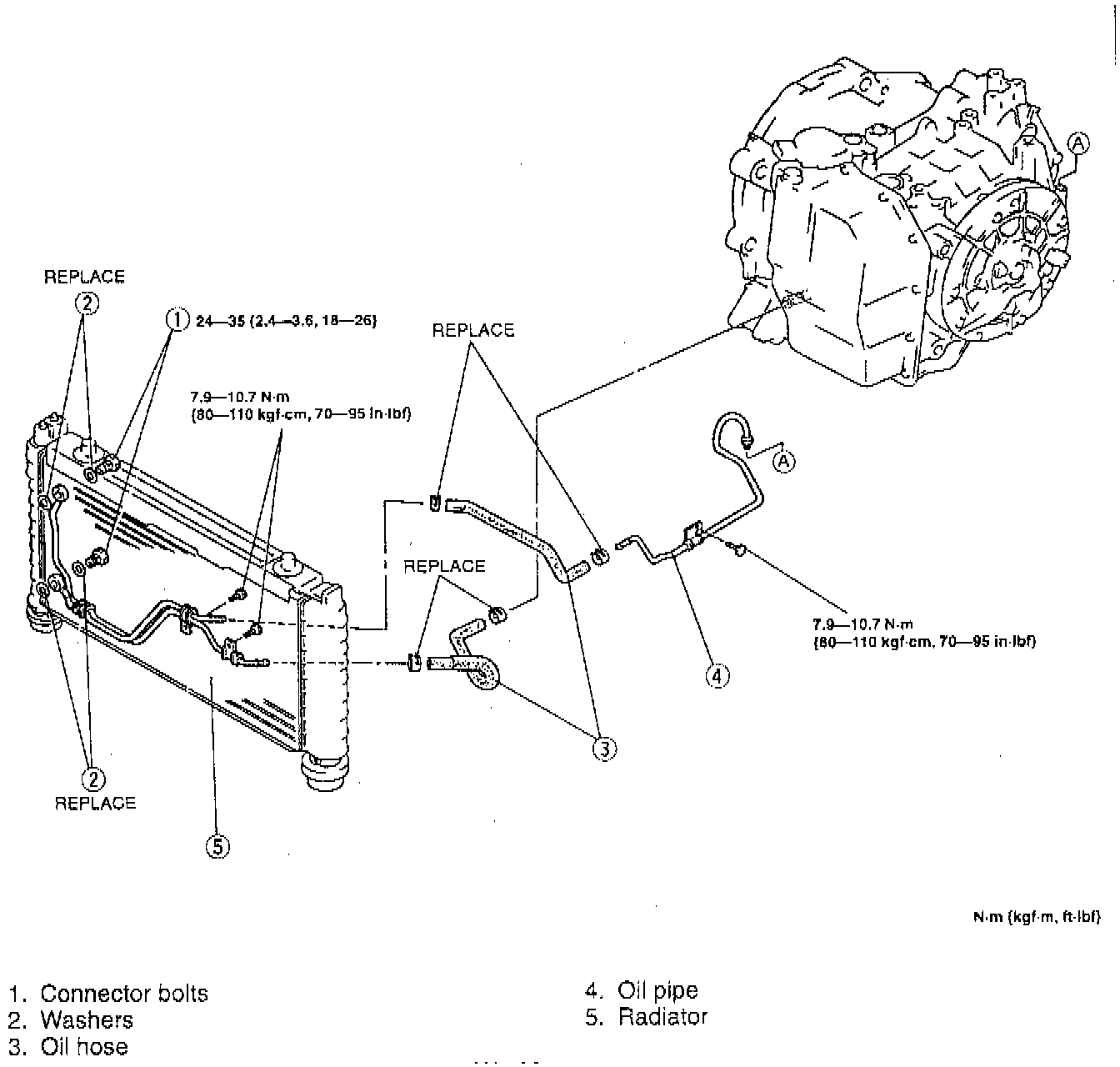

2. Remove in the order shown in the illustration.

INSTALLATION
- Install in the reverse order of removal, referring to the following note:





Oil Hoses

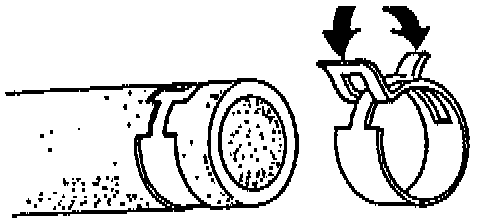

CAUTION: If reusing the hose clamp, position it in the original location on the hose, and squeeze the clamp lightly with large pliers to ensure a tight fit.

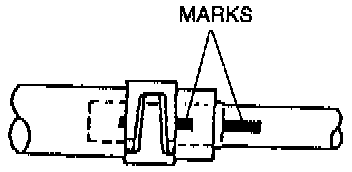

1. Align the marks, and slide the oil cooler hose onto the oil cooler pipe until it is fully seated as shown.
2. Install the hose clamp onto the hose at the center of the mark and at the angle shown.
3. Verify that the hose clamp does not interfere with any other parts.

AFTER INSTALLATION
1. Add ATF to the specified level.
2. Connect the negative battery cable.
3. Inspect for oil leakage from the oil pipes and oil hoses.
4. Inspect the ATF level and condition.
