A/C/Entertainment/BETM - Manual Corrections

Bulletin No.: 002/94
Issued: 3/7/94
Revised:

Category
Z

Applicable Model/s
1994 626/MX-6

Subject:
BETM CORRECTIONS

DESCRIPTION

Included are replacement pages for 1994 626/MX-6 Body Electric Troubleshooting Manual which require correction for the following reasons:

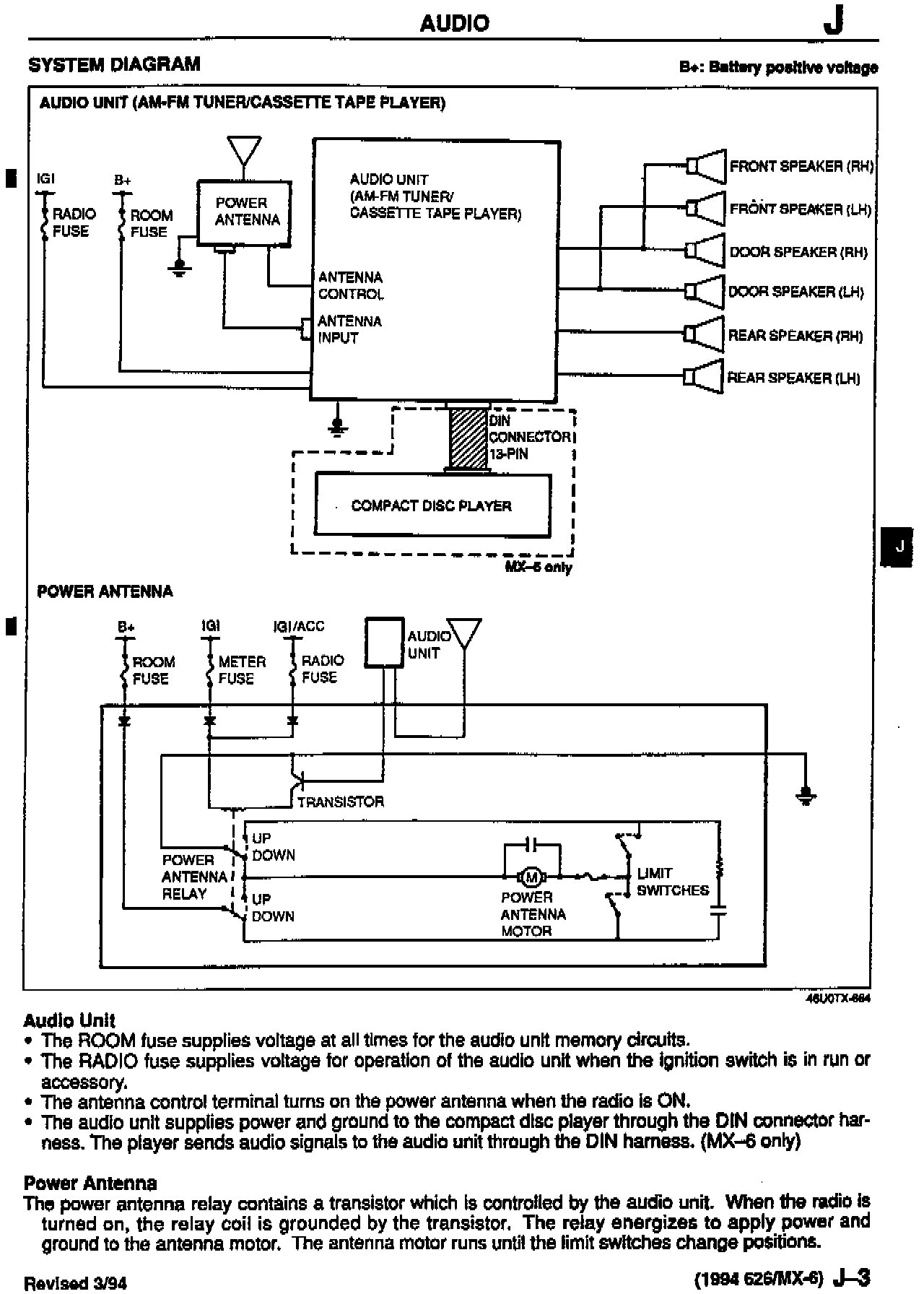

Page J-3 - Correction To Diagram

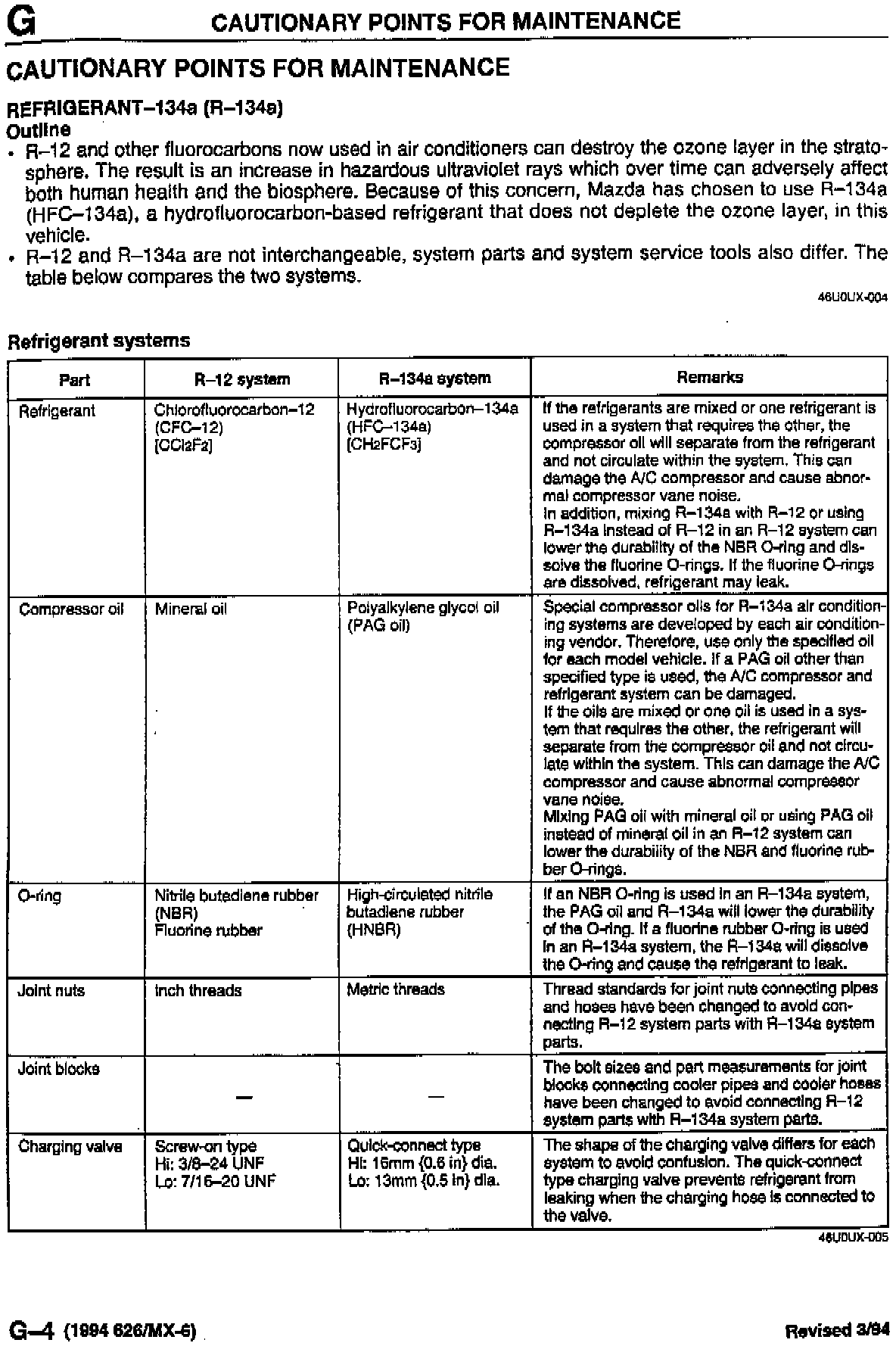

Page G-4 - Corrections To Caution Points

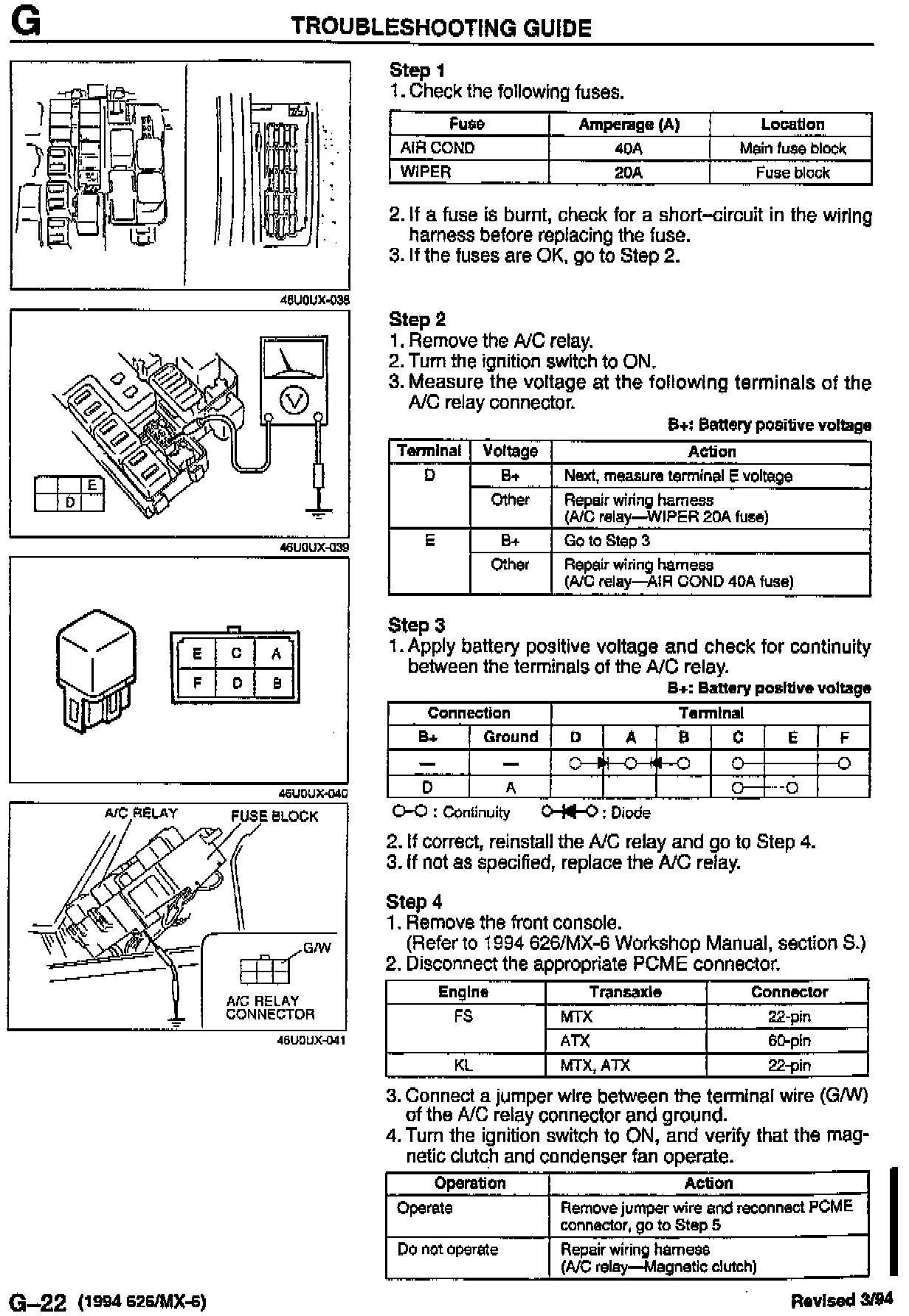

Page G-22 - Corrections To A/C Relay Troubleshooting

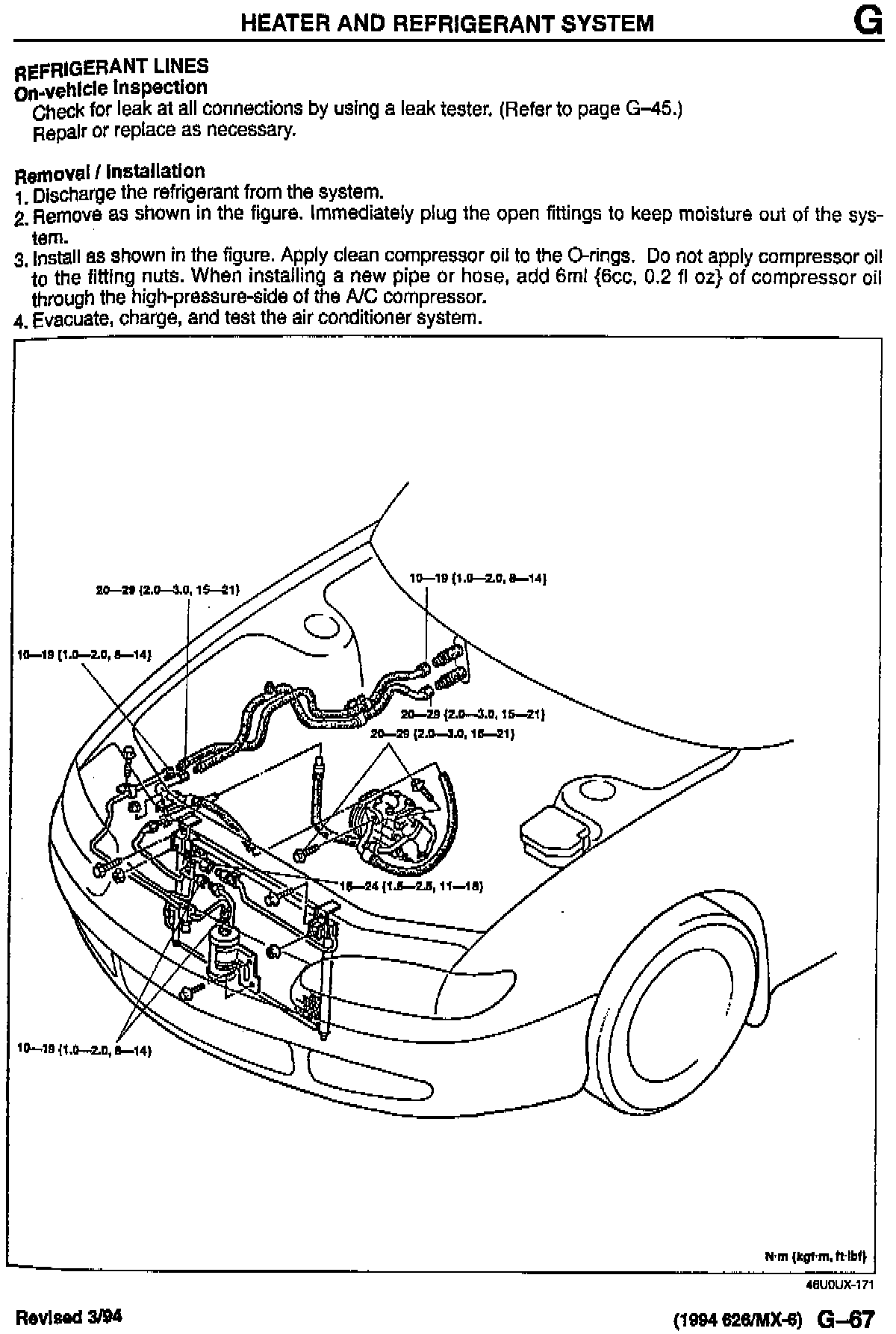

Page G-67 - Correction To A/C System Piping Diagram

Please add the new pages as follows:

1. Replace the original page in the manual with this self adhering replacement page.

NOTE:
For additional replacement pages, please call Helm, INC. at (800) 782-4356 Monday through Friday, 9am to 5pm (EST) or fax (313) 883-1041.

Please list the correction bulletin number (shown in the upper right-hand corner of this page), category and quantity required. We have a limited supply of replacement pages. Orders will be filled on a first-come, first-serve basis. Allow five working days for delivery.

Reproductions of the manual will be updated prior to printing. Manuals purchased from the current inventory at Helm, Inc. will be supplied with the applicable correction pages.
