Fuel Pressure Regulator: Service and Repair

Pressure Regulator Replacement:

WARNING:
^ Release fuel pressure.
^ Keep sparks, cigarettes, and open flames away.

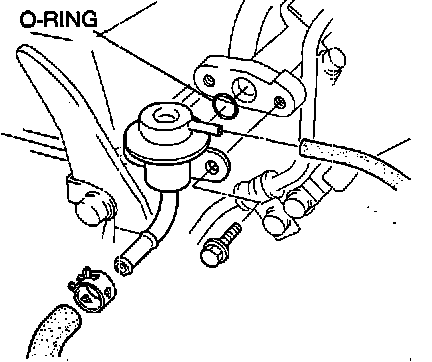

1. Disconnect vacuum and fuel return hoses.
2. Remove bolts and lift off regulator.
3. Install regulator with new O-ring. Tighten bolts as specified:

TORQUE: 70 - 95.4 inlb (7.8 - 10.7 Nm)

4. Connect vacuum and fuel return hoses.
