Injector Volume Test:

WARNING: Release fuel pressure. Keep sparks, cigarettes, and open flames away.

1. Remove injectors and distributor pipe as an assembly.

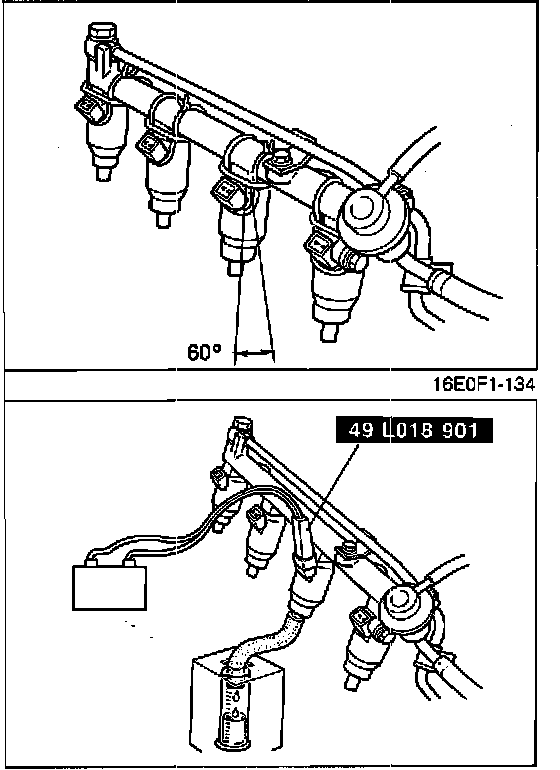

2. Firmly fix injectors to pipe as shown.
3. Connect SST, or equivalent, to battery and an injector.
4. Catch fuel in graduated container and measure. Volume should be 1.4 - 2.0 fl oz (47 - 68 cc) / 15 sec.
5. If not as specified, and not other problems are detected, replace injector.
