Injector Leak Test:

WARNING: ^Release fuel pressure.
^Keep sparks, cigarettes, and open flames away.

1. Remove injectors and distribution pipe as an assembly.

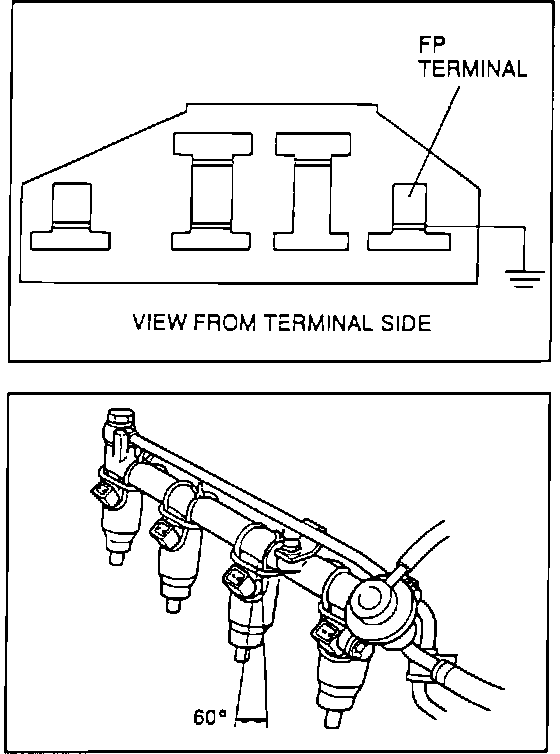

2. Fix injectors firmly to pipe as shown.
3. Ground data link connector terminal F/P with jumper wire.
4. Turn ignition "ON."
5. Tilt injectors approximately 60° and verify no fuel leaks from injector nozzles:

ACCEPTABLE LEAKAGE: 1 drop / 2 min.

6. If fuel leaks, replace injector.
