Home
>>
Mazda
>>
1994
>>
MX-6 L4-1991cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Circuit Diagrams
>>
E-2
E-2

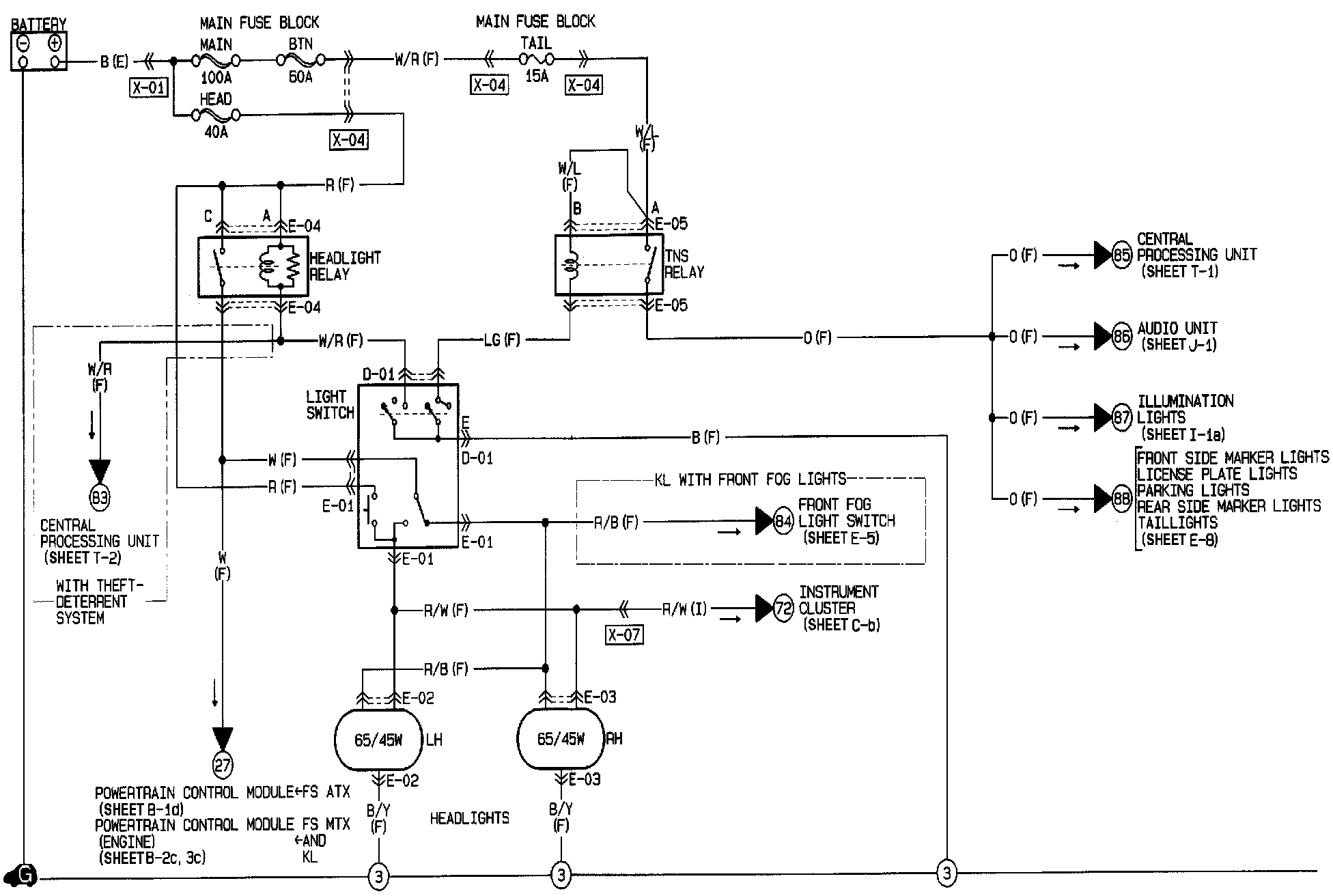

Federal And California Headlights:
