Home
>>
Mazda
>>
1994
>>
MX-6 L4-1991cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>

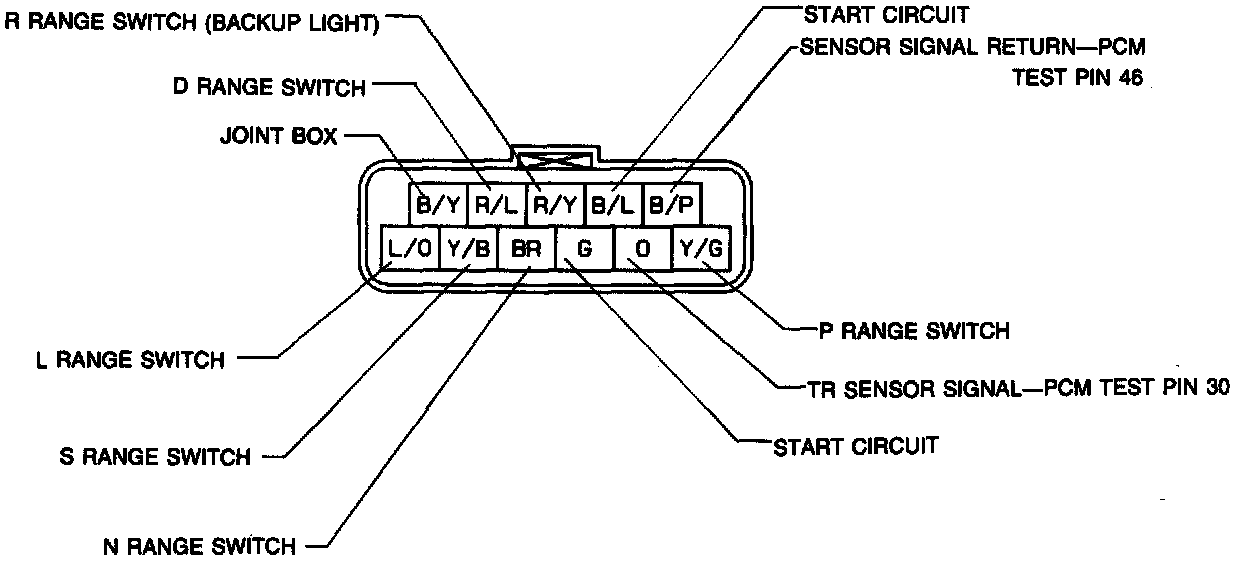

TR Sensor Connector
TR Sensor Connector
