Mazda
>>
1994
>>
MX-5 Miata L4-1.8L DOHC
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Shift Interlock
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

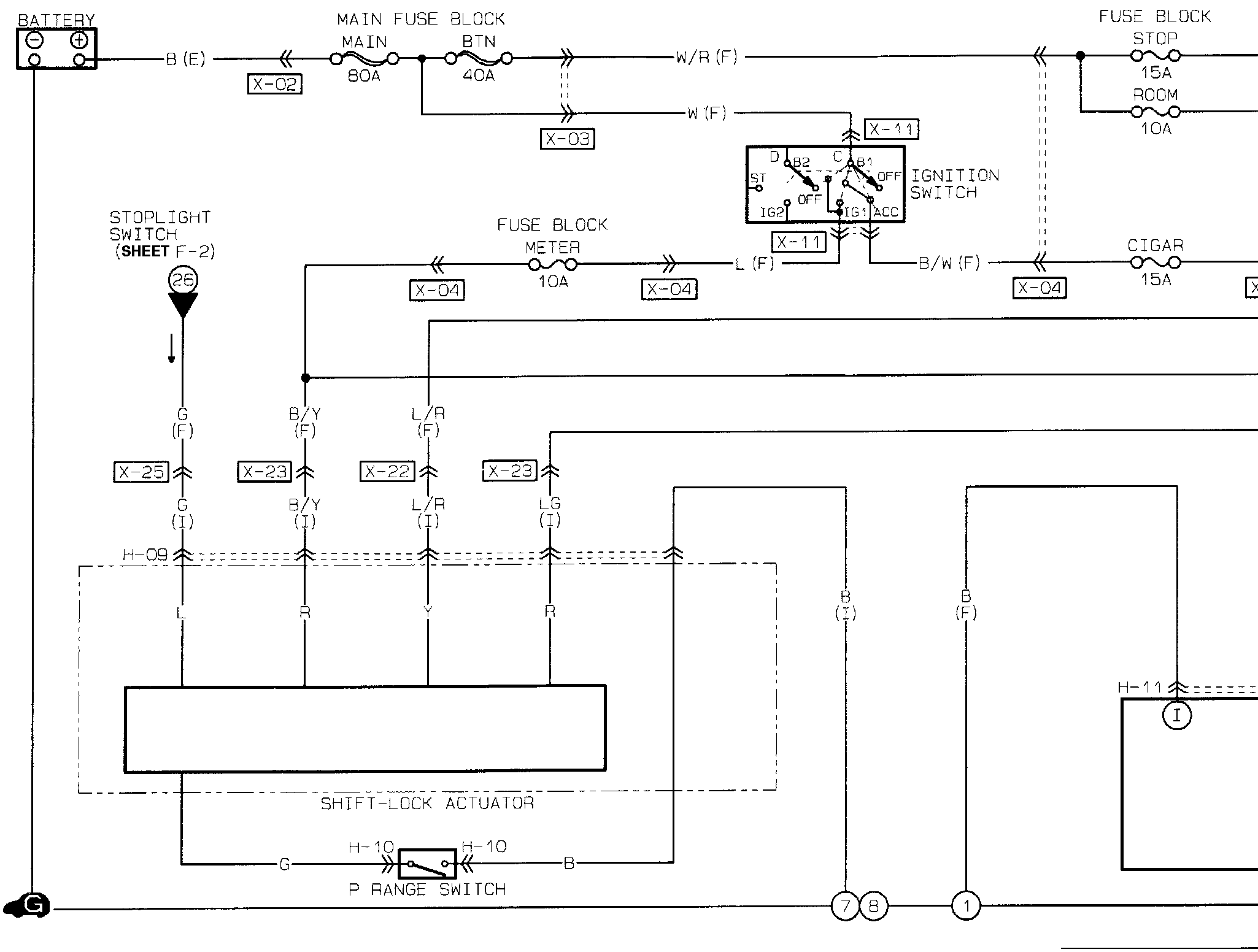

�%?HAT Shift-Lock System:
