Selector Lever

1. Disconnect battery ground cable to deactivate shift-lock, then remove rear console, selector knob, selector sleeve and indicator panel.
2. Loosen locknut and shift transmission to P position by pushing adjustment lever forward.
3. Adjust lever so clearance between guide plate and guide pin in P position with push rod lightly pressed, Fig. 2. Torque locknut to 14 - 18 ft.lb.
4. Move selector lever to N position and D range and verify there is same clearance between guide plate and pin. If not as specified, readjust lever.
5. Install indicator panel, selector sleeve, selector knob and rear console as described under.
6. Check selector lever operation.

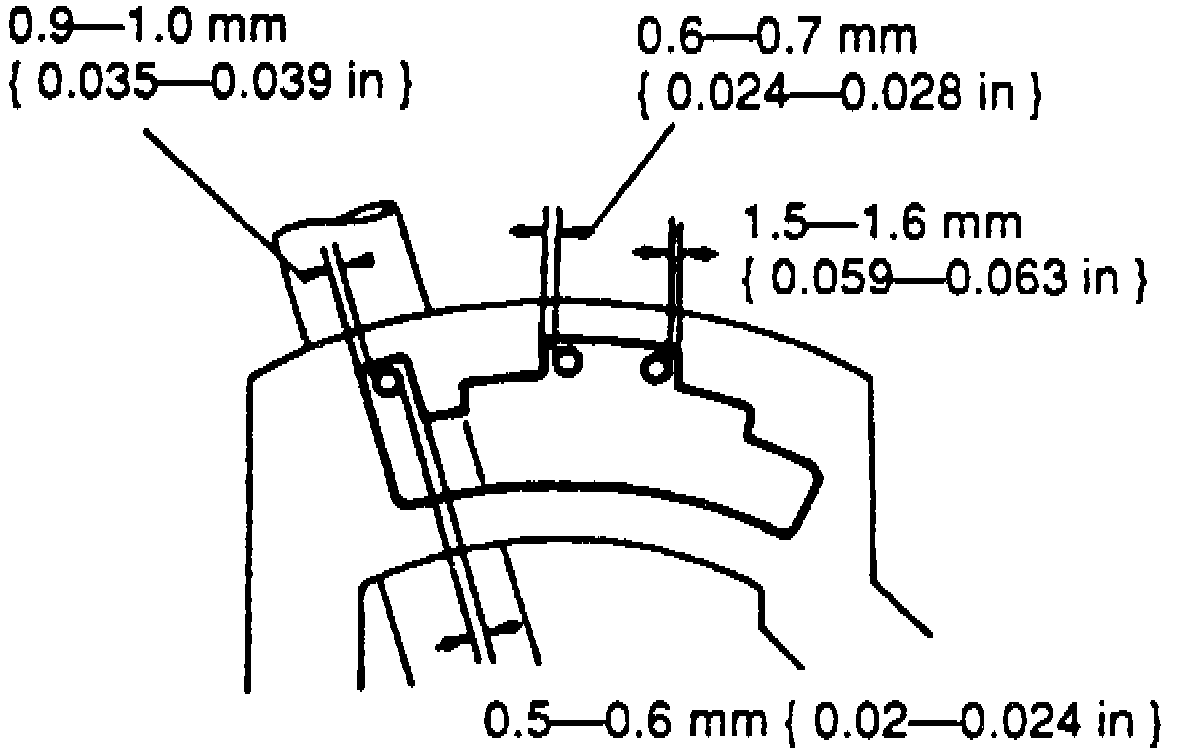

Fig. 2 Selector Lever Adjustment:
