Power Antenna Relay - Inspection Procedure: Overview

Bulletin No. 004/98

Issued 04/22/98

Revised

Category
T (09)

Applicable Model/s
1990 - 97 Miata

Subject
POWER ANTENNA RELAY INSPECTION PROCEDURE

APPLICABLE MODELS
1990 - 97 Miata

DESCRIPTION

Power antenna relay repair parts are now available for resolving customer concerns in this area.

Prior to replacing the power antenna unit, inspect the relay according to the attached procedure. If the power antenna is identified as the source of the concern, replace only the relay.

PARTS INFORMATION

CAUTION:

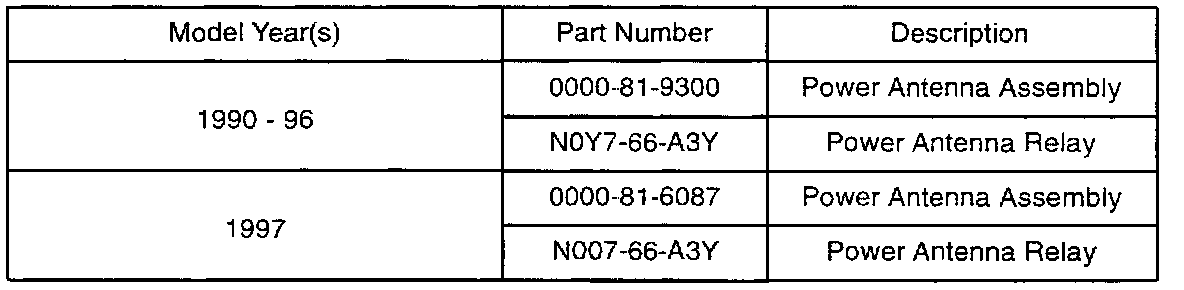

Depending on the build date of the vehicle, parts interchangeability will vary. If the wrong replacement part is installed, the following symptoms and/or malfunctions may occur. Refer to the table below for applicable parts.

^ Replacement parts for the 1996 - 97 Miata can be used to correct concerns with the 1990 - 95 Miata; however, the antenna may momentarily go down during engine cranking. This symptom usually occurs in the 1996 - 97 Miata.

^ If replacement parts for the 1990 - 95 Miata are used in the 1996 - 97 Miata, the power antenna will not operate.

^ If replacement antenna relay parts are not available at the time of repair, older assemblies (0000-81-9300) can utilize the newer relay (N007-66-A3Y).





NOTE:
The parts information in this bulletin supersedes Accessory Bulletin XS-1 parts information.

WARRANTY INFORMATION

(Applies To Verified Customer Complaints On Vehicles Covered Under Normal Warranty. Refer To The SRT Microfiche For Warranty Term Information.)

Warranty Type: A
Symptom Code: B5 (Antenna Assembly)/56 (Relay)
Damage Code: AB (Antenna Assembly)/9W (Relay)
Part Number Main Cause: Refer to parts Information
Quantity: 1
Operation Number: T1006BRX (Antenna Assembly)/XX952XRX (Relay)
Labor Hours: 0.3 (Antenna Assembly)/0.3 (Relay)
