A/C Component - Replacement Identification

Bulletin No. 010/95
Issued 9/21/95
Revised 9/29/95

Category
U

Applicable Model/s
1994-95
MX-5 MIATA

Subject
A/C COMPONENT REPLACEMENT IDENTIFICATION

The "Parts Information" portion of this bulletin is revised. Changes are highlighted by asterisks. Replace the original bulletin with this revised copy.

APPLICABLE MODELS/VINS

All 1994 - 95 MX-5 Miata vehicles with air conditioning.

DESCRIPTION





Two different types of condensers, receiver driers and # 2 pipes (see note) are used on the above models. These components are not interchangeable. Use the following method and the application chart (below) to identify the correct replacement components.

NOTE:
The # 2 pipe connects the receiver dryer to the smaller diameter pipe leading to the cooling unit called the "H" pipe.

IDENTIFICATION

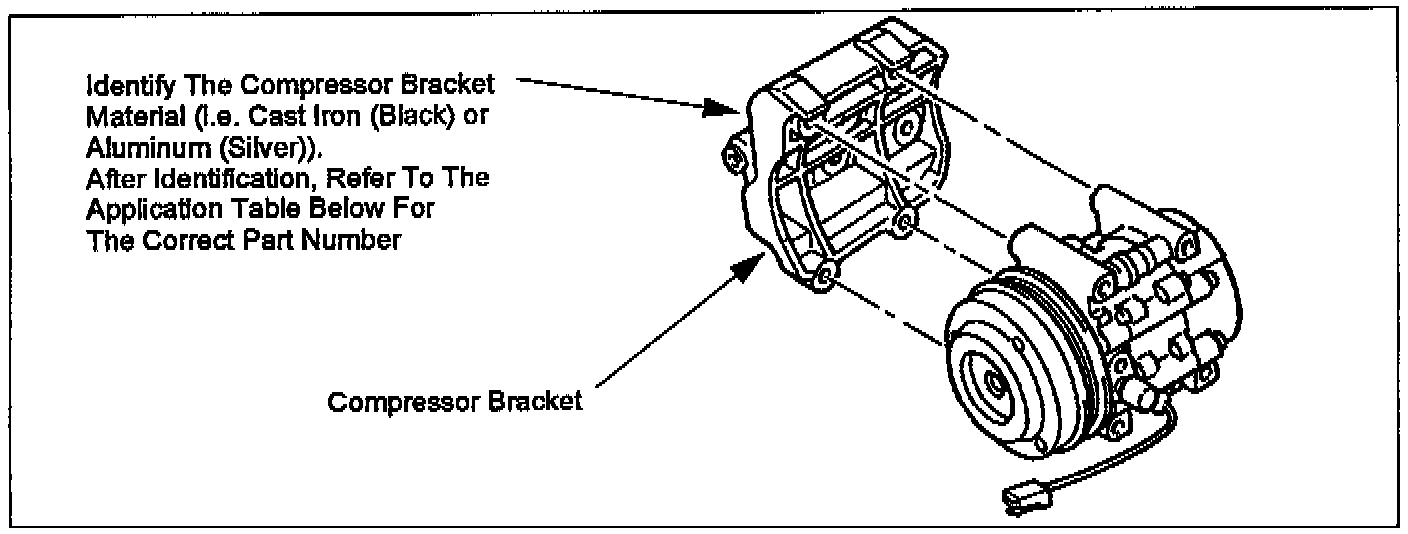

Inspect the compressor mounting bracket material.

^ If the bracket is painted "black" the material is cast iron.

^ If the material is "silver" the material is aluminum.

If the material is not identifiable by color, use a magnet to determine cast iron from aluminum.

* PARTS INFORMATION

Item Part Number (Cast Iron Bracket) Part Number (Aluminum Bracket)

Condenser NA75 61 480 NA75 61 480A

Receiver/Dryer NA01 61 500A NA75 61 500

# 2 Pipe NA75 61 467 NA75 61 467A *
