Rear Upper Arm

1. Raise and support vehicle.
2. Remove upper arm to knuckle attaching bolt, Fig. 11.

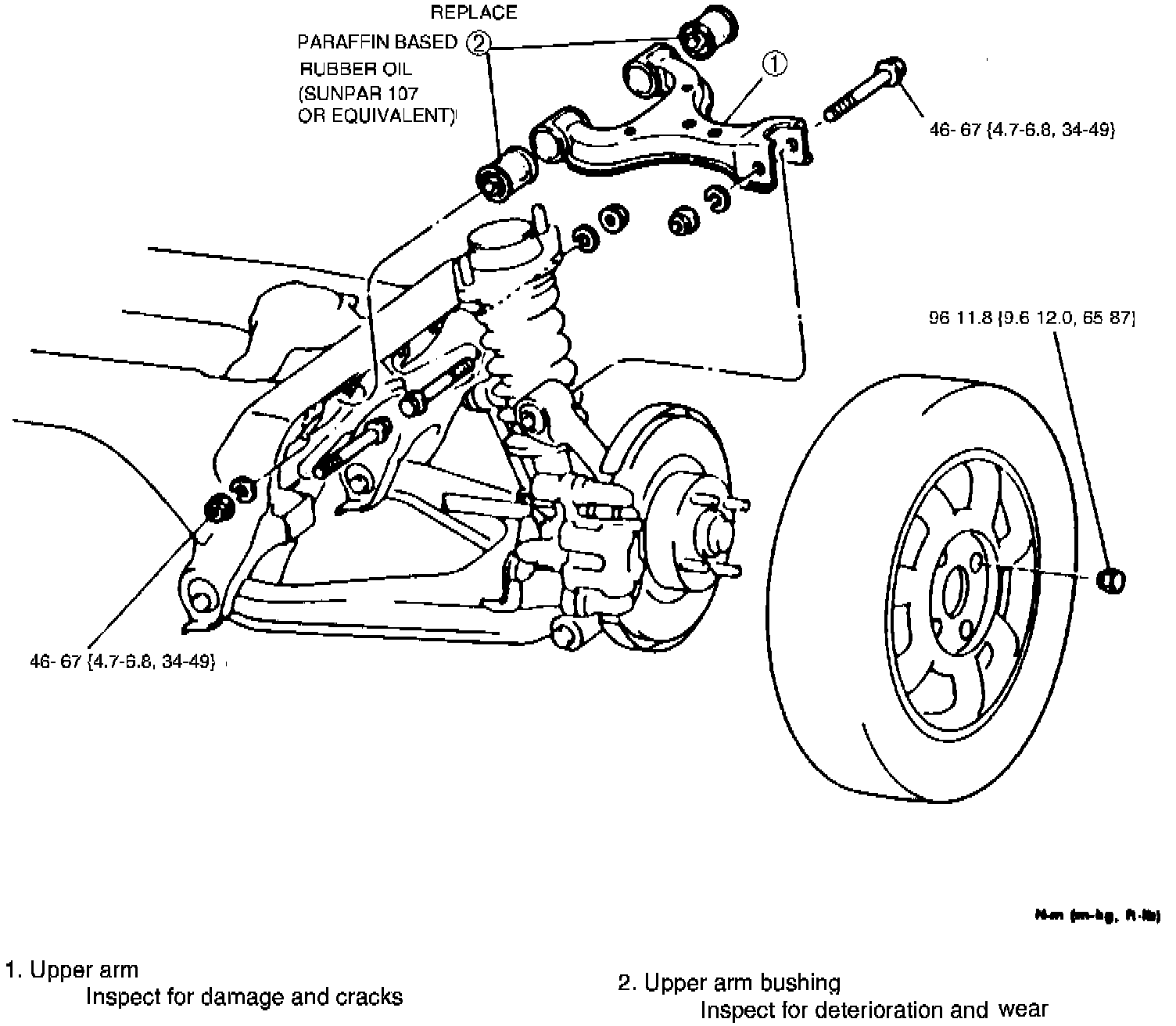

Fig. 11 Upper Control Arm Replacement:

3. Remove upper arm to crossmember attaching bolts, then the upper arm.
4. Reverse procedure to install. Adjust rear wheel alignment.
