Rear Lower Arm

1. Raise and support vehicle.
2. Remove wheel and tire assembly.
3. Remove stabilizer control link bolt, Fig. 10.

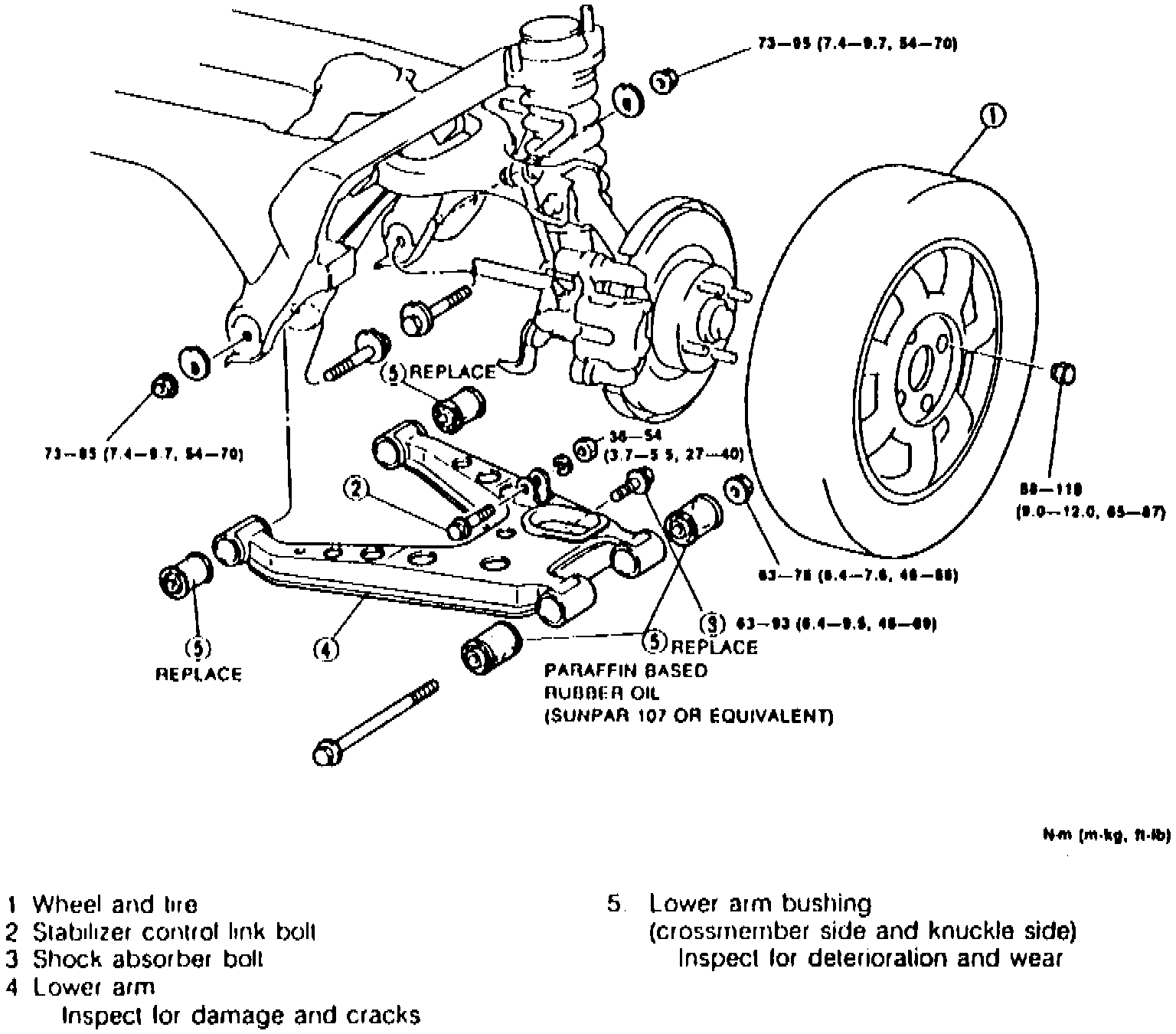

Fig. 10 Lower Control Arm Replacement:

4. Remove lower shock absorber bolt, then the lower control arm.
5. Remove lower arm bushing.
6. Reverse procedure to install. Adjust rear wheel alignment.
