Removal and Installation

1. Remove components in numerical sequence shown in Fig. 13. Mark pressure pipe for installation reference before loosening.

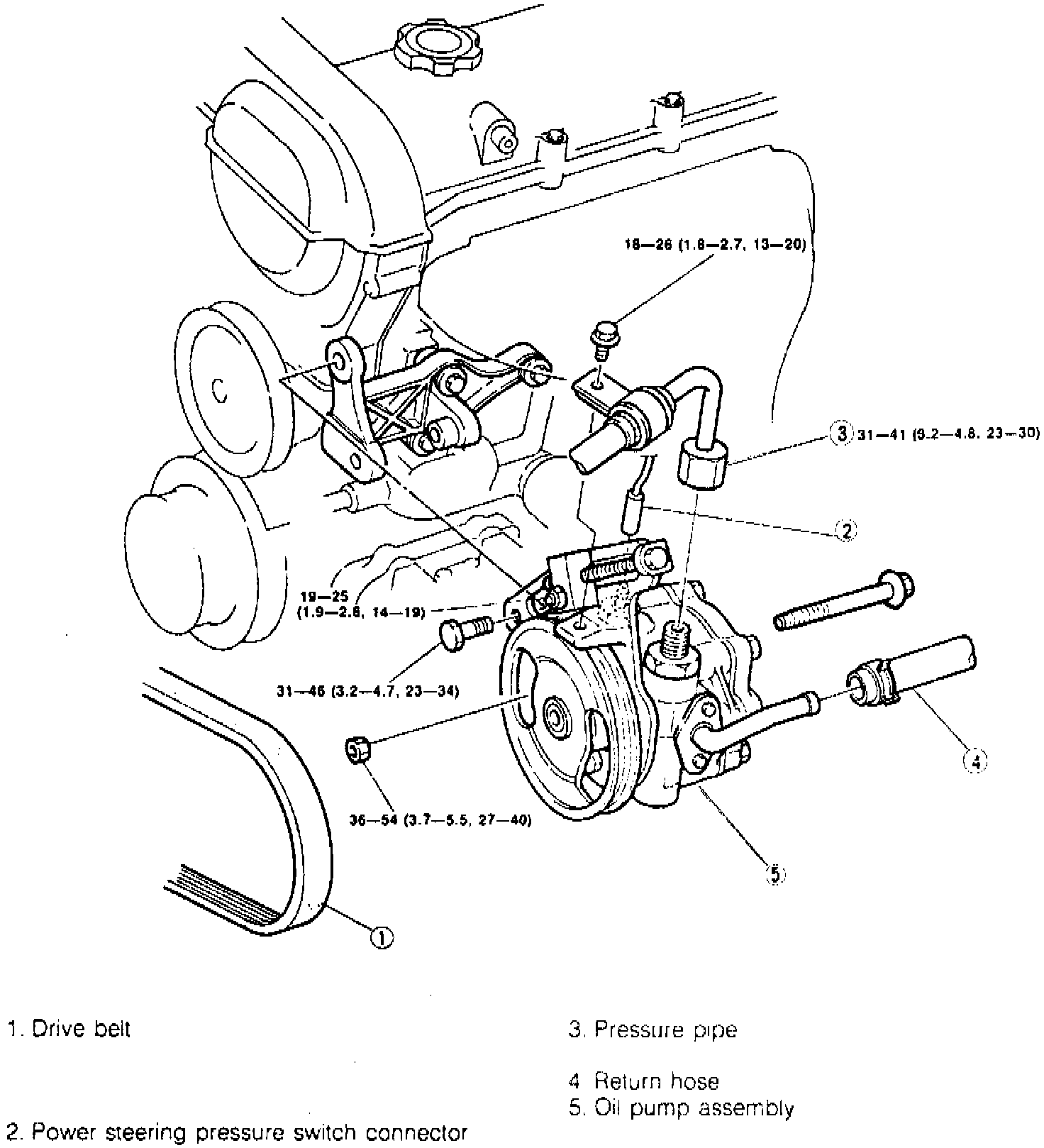

Fig. 13 Power Steering Pump & Related Components:

2. Reverse procedure to install, noting the following:
a. Check system for fluid leaks.
b. Bleed air from system.
