Symptom Related Diagnostic Procedures
Refer to
Fig. 1 and 2
when troubleshooting the
starting system
.

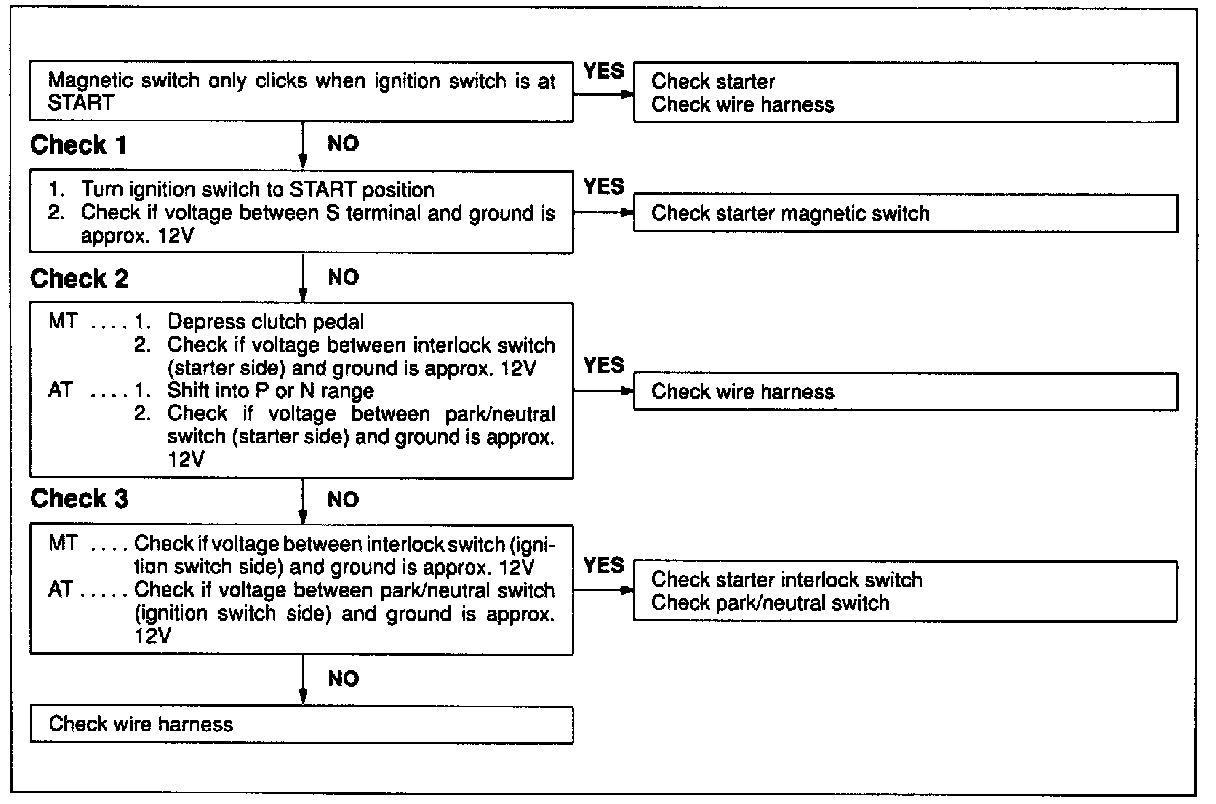

Fig. 1 Starting System Troubleshooting:
Fig. 2 Starting System Troubleshooting:
