MX-5 Miata L4-1.8L DOHC
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Locations
>>
MT Charging System, Starting System
MT Charging System, Starting System

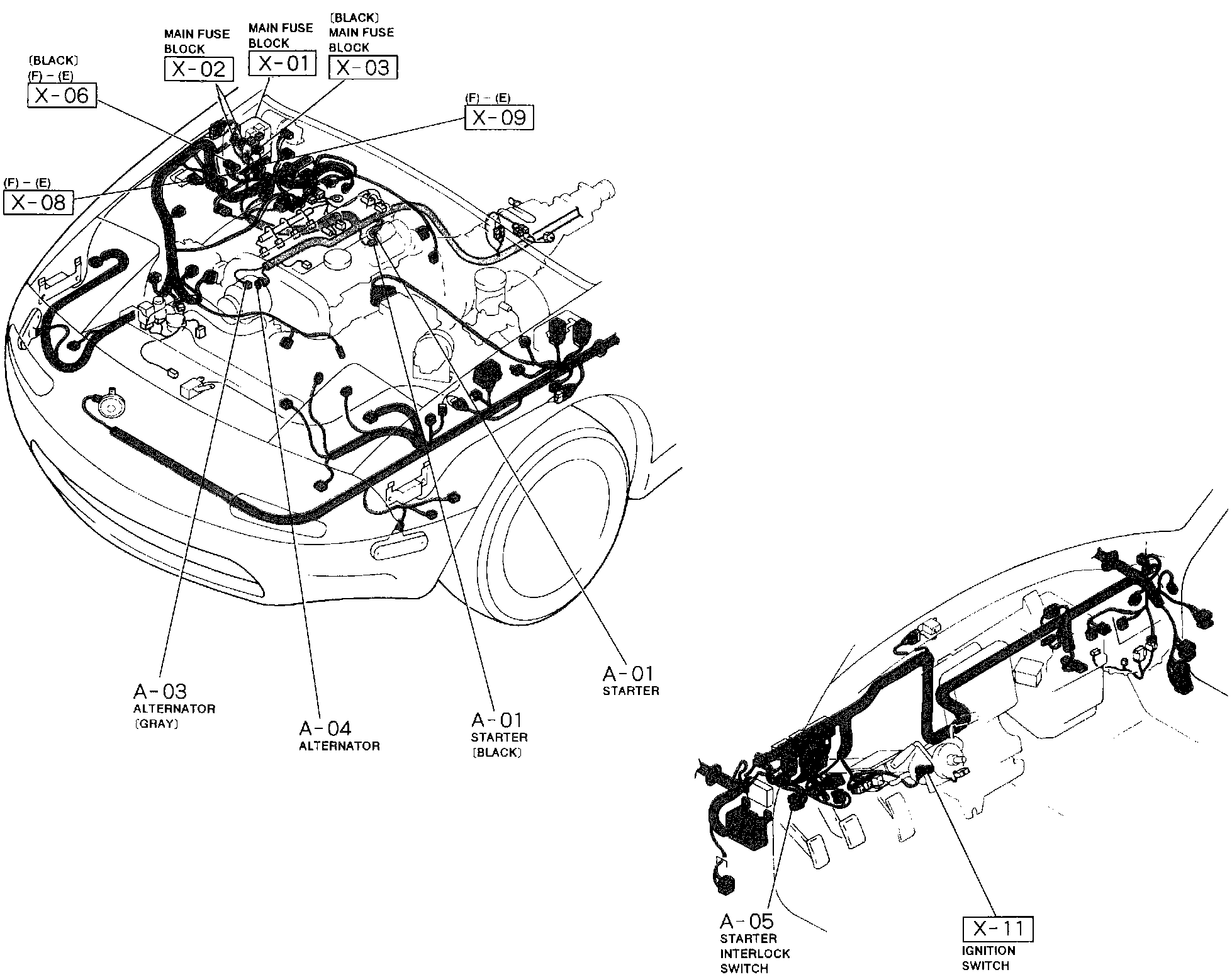

Connector Locations:
