Mazda
>>
1994
>>
MX-5 Miata L4-1.8L DOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
Terminals 1A-2C
Terminals 1A-2C

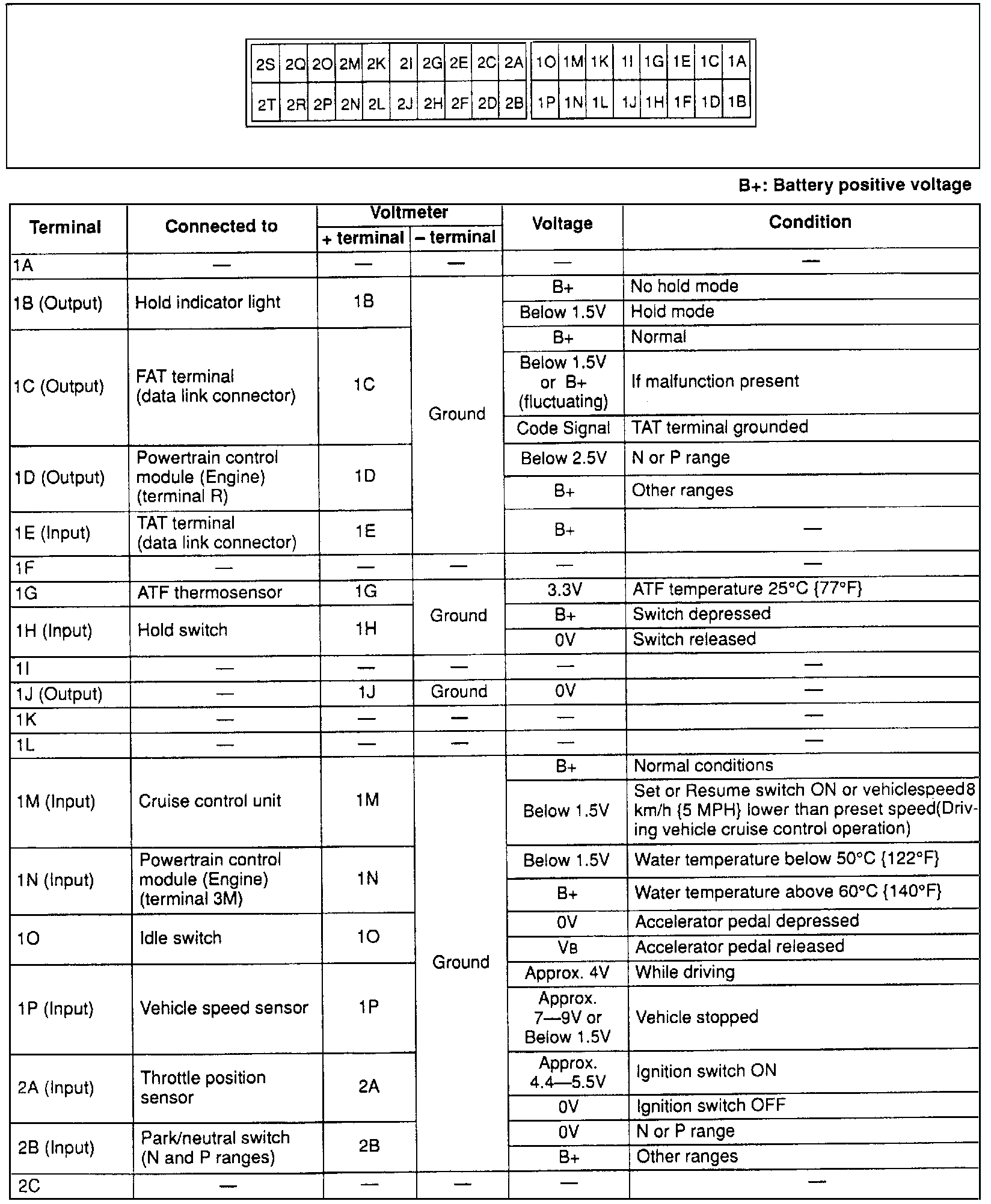

Terminal Voltage Chart (Reference Data):
