Home >> Mazda >> 1994 >> MX-5 Miata L4-1.8L DOHC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Cooling System >> Radiator Cooling Fan Motor Relay >> Description and Operation

Radiator Cooling Fan Motor Relay: Description and Operation

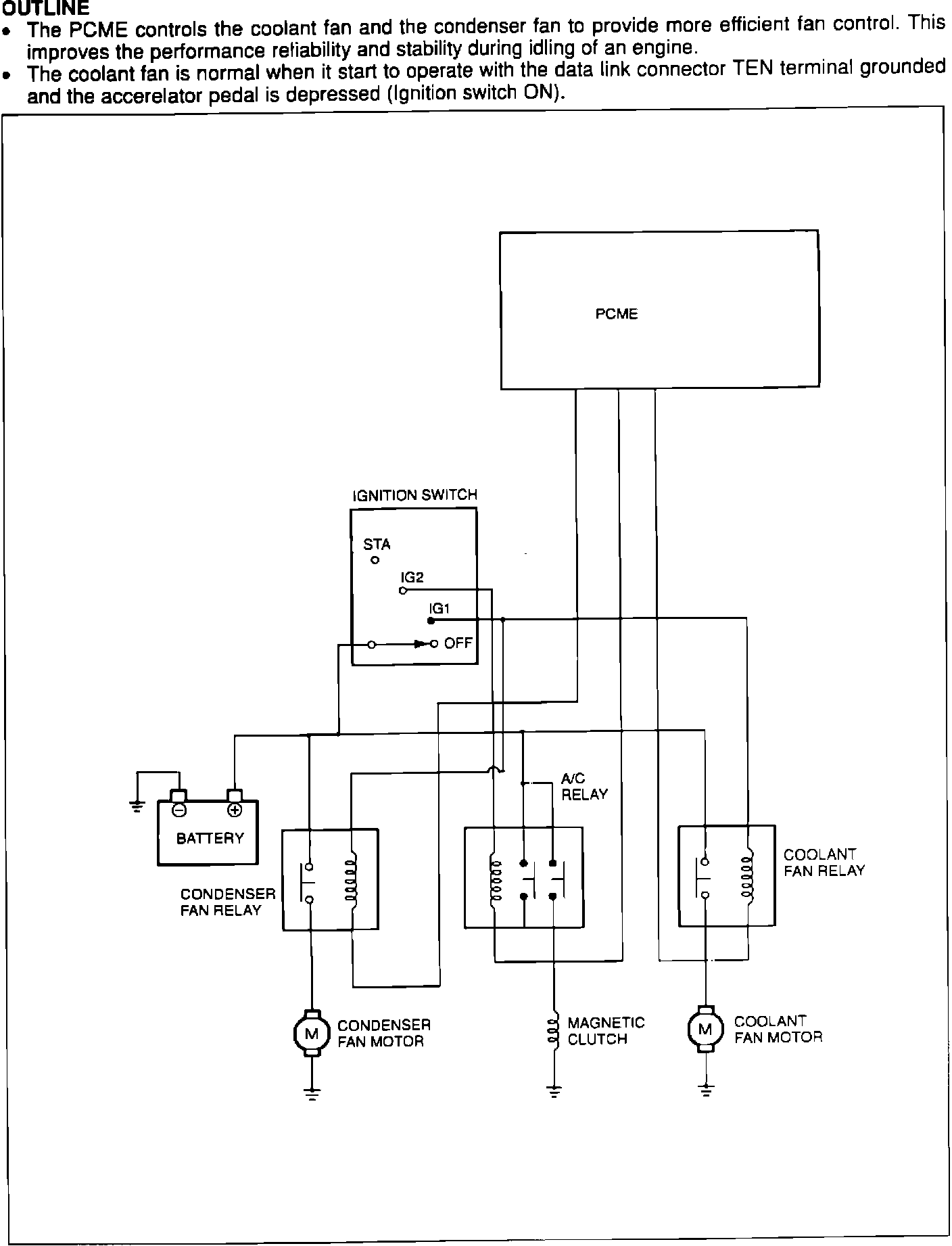

Coolant Fan Control System:
