Fuel Pump Relay: Testing and Inspection

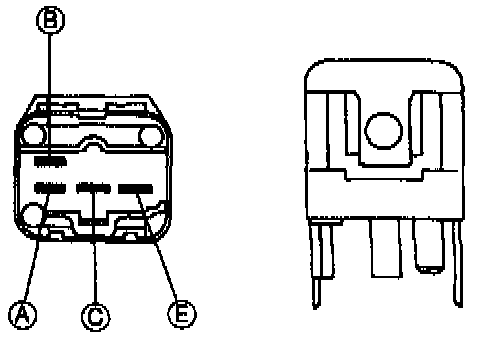

Fuel Pump Relay Testing:

1. Unplug and remove relay.
2. Apply positive battery voltage to terminal A and ground terminal B.
3. There should be continuity across terminals D and E.
4. If not as specified, replace relay.
