Fuel Pressure Release: Service and Repair

Fuel Pressure Release And Gauge Installation:

WARNING: Fuel in the system is under high pressure when the engine is not running.
Fuel vapor is hazardous. It can easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel.
Fuel spills and leaks are dangerous. Fuel can ignite and cause injury, damage or death. Fuel can also irritate skin and eyes.

1. Start engine.

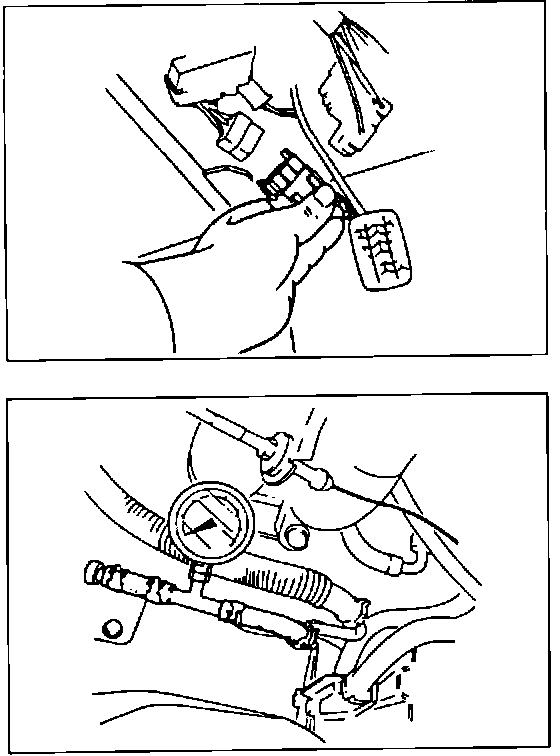

2. Disconnect fuel pump relay connector.
3. After engine stalls, turn ignition OFF.
4. Reconnect fuel pump relay connector.
5. When disconnecting a fuel line hose, wrap a rag around it to protect against fuel leakage.
6. Install hose clamps to secure pressure gauge connections.
