ABS Light: Testing and Inspection

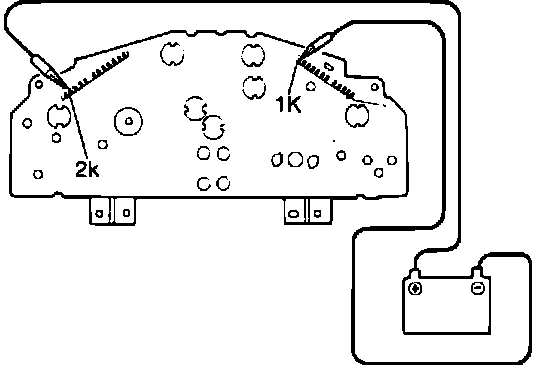

Fig. 32 Anti-lock Warning Light Test:

1. Remove instrument cluster.
2. Connect 12 volts to terminal 2K and ground to terminal 1K, Fig. 32.
3. Ensure ABS warning light glows.
4. If light does not glow, check meter fuse, bulb and wiring harness.
5. If light glows, check wiring harness to control unit or hydraulic unit. Repair or replace as necessary.
