Water Pump: Service and Repair

Caution
- Obtain the code number and deactivate the audio anti-theft system before disconnecting the battery.
- Do not disassemble the water pump. if a problem is found, replace the pump as a unit.

1. Disconnect the negative battery cable.
2. Drain the engine coolant.
3. Remove in the order shown in the image, referring to Removal Notes, below.





1. Timing belt
2. P/S oil pump
3. Water hose
4. Water pump
- Inspect for cracks, damaged mounting surface, bearing condition, and leakage.
5. Water inlet pipe
4. Install in the reverse order of removal.

Removal Notes





P/S oil pump

Caution: Do not damage the hoses.

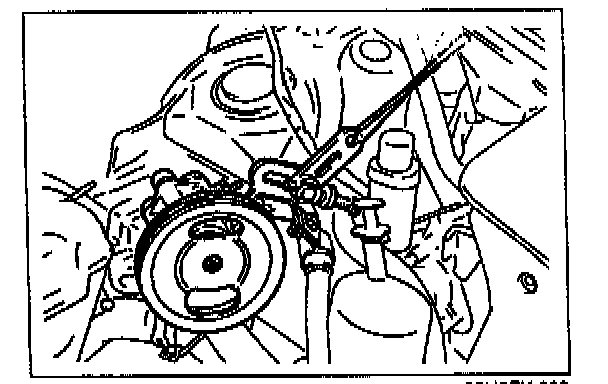

1. Remove the P/S oil pump with the hoses still connected.
2. Position the pump away from the engine and affix it with wire.

Steps After Installation
1. Fill the radiator with the specified amount and type of engine coolant.
Coolant

2. Connect the negative battery cable.
3. Start the engine and check for leaks.
