Valve Guide Seal: Service and Repair

DISASSEMBLY
Valve seal
Remove the valve seals by using the SST.











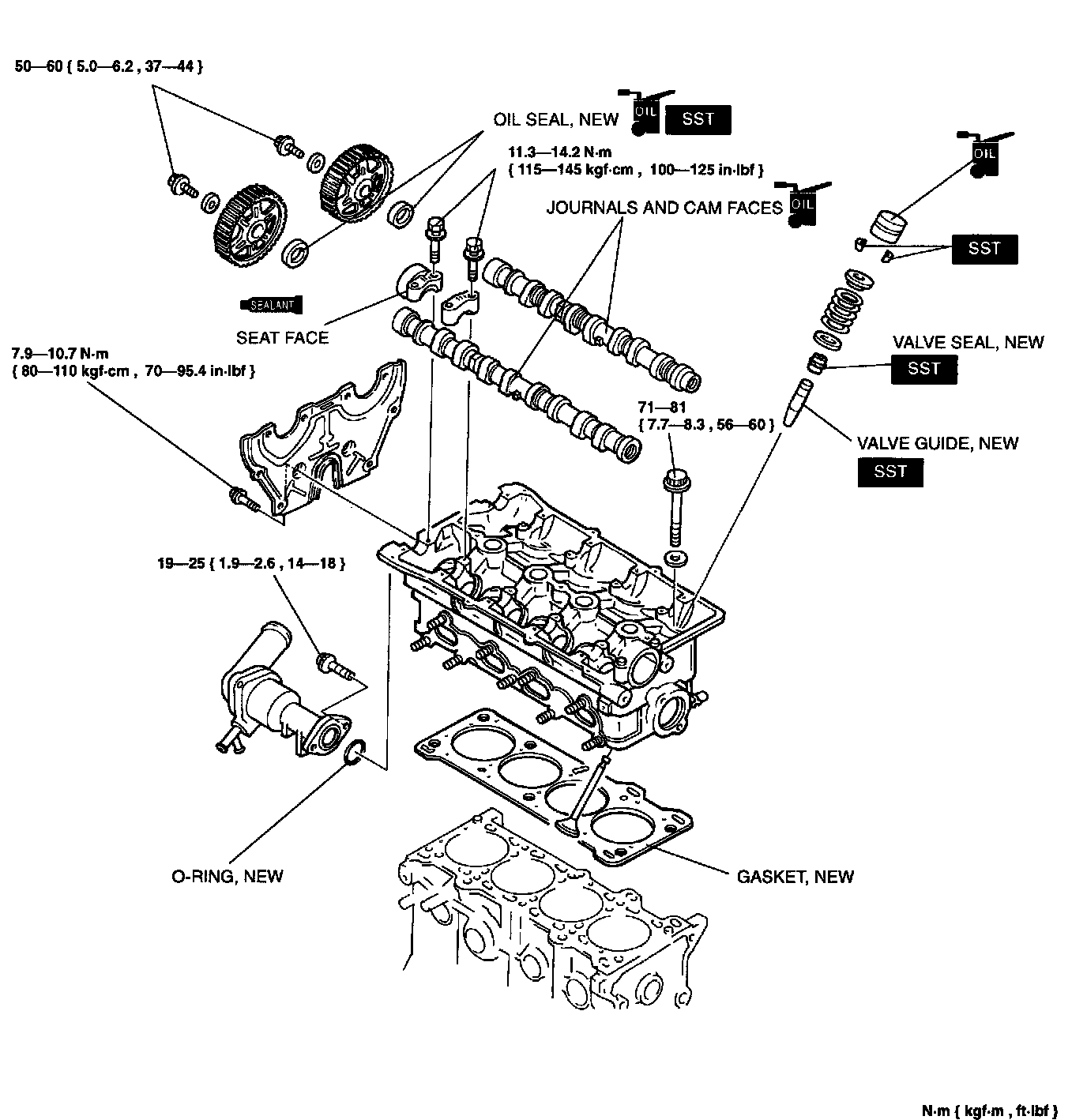

ASSEMBLY
Valve Seal

Note

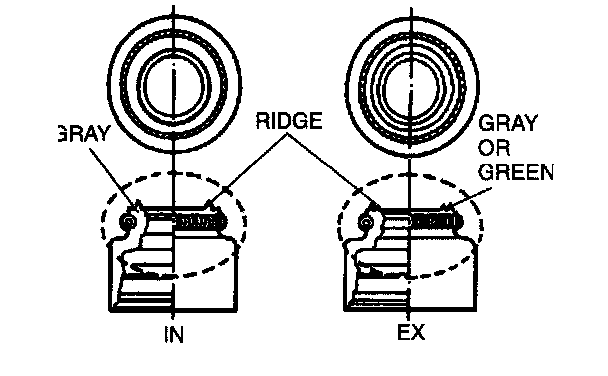

^ The intake and exhaust valve seals are different as shown.

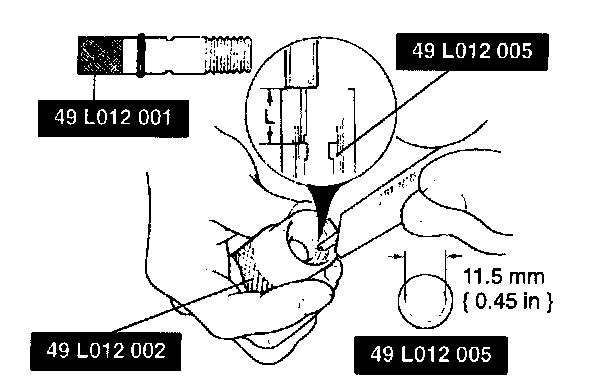

1. Assemble the SSTs so that depth L is as specified.
Depth L: 18.3-18.9 mm ( 0.721-0.744 in )





2. Slide the valve seal onto the valve guide.

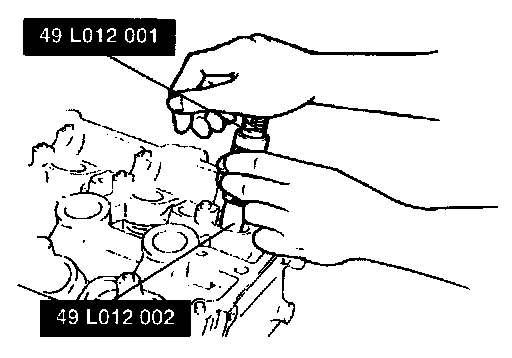

3. Set the SST against the valve seal.





4. Press the valve seal in until the SST contacts the cylinder head.
