Home >> Mazda >> 1994 >> MX-5 Miata L4-1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Circuit Diagrams >> F-2

F-2

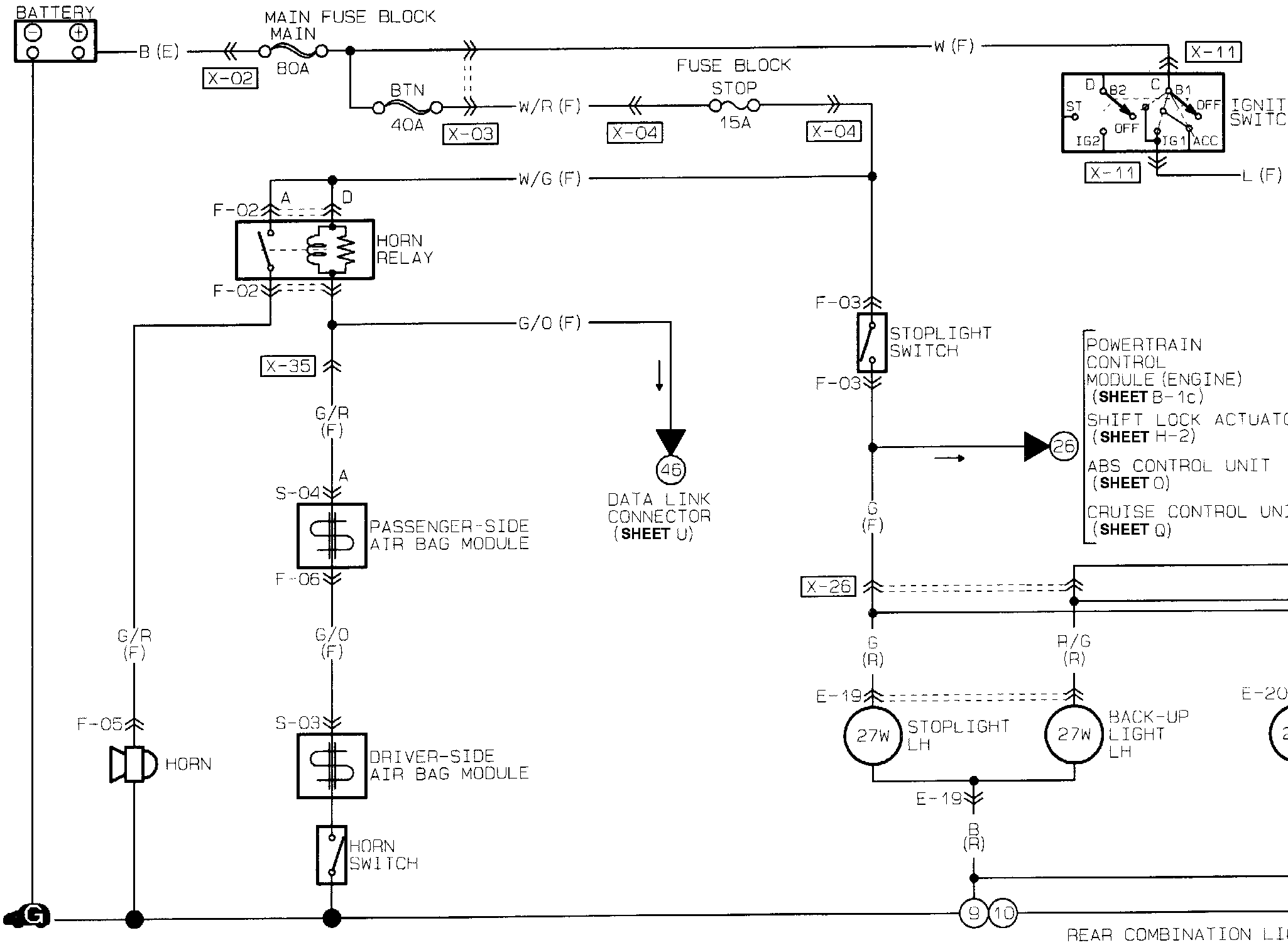

6�}uBack-Up Lights, Horn, Stop Lights, High-Mount Stoplight:
