Home >> Mazda >> 1994 >> MX-5 Miata L4-1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Circuit Diagrams >> C-B

C-B

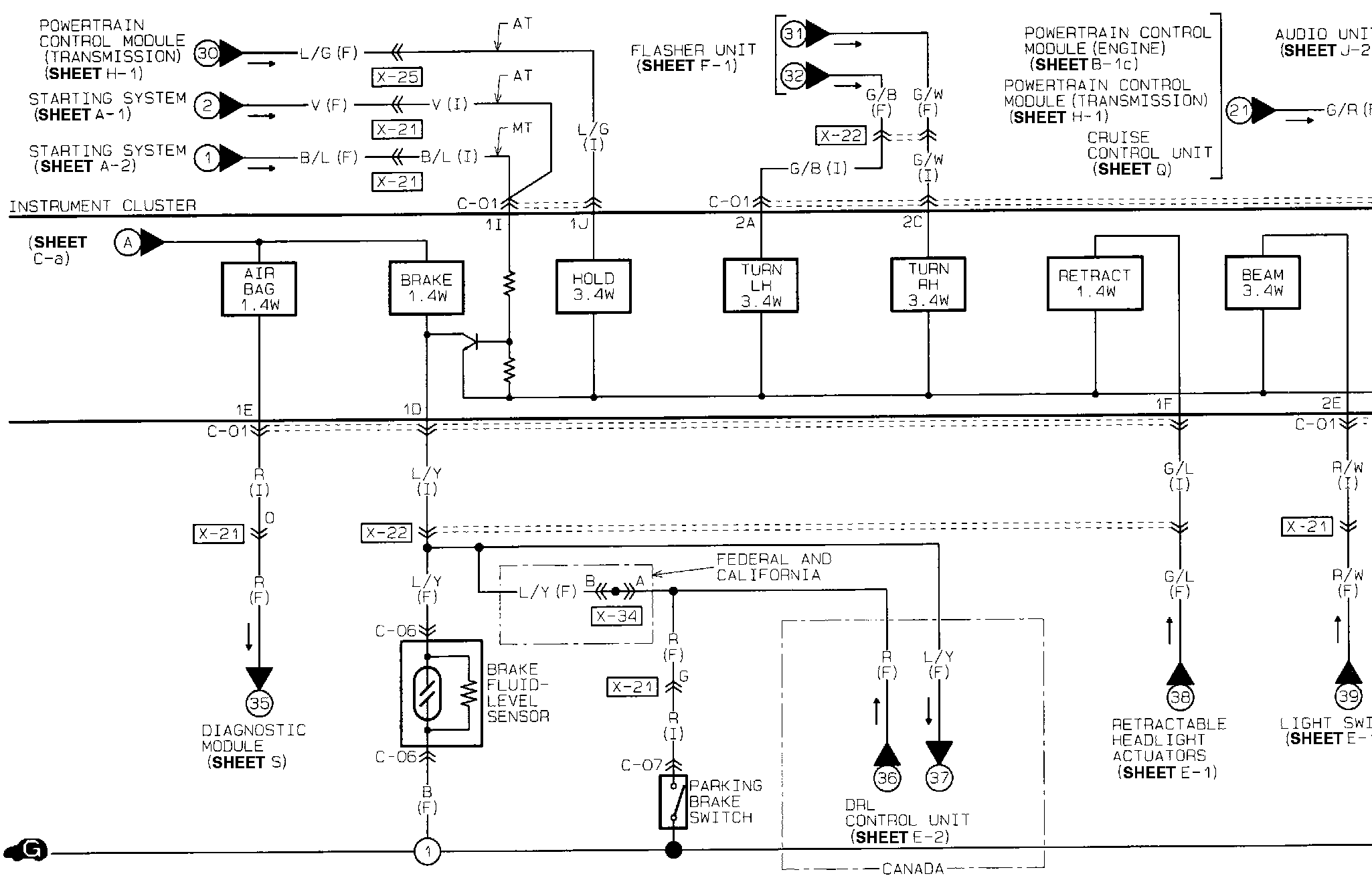

�d6tInstrument Cluster:
