Home >> Mazda >> 1994 >> MX-5 Miata L4-1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Circuit Diagrams >> B-3

B-3

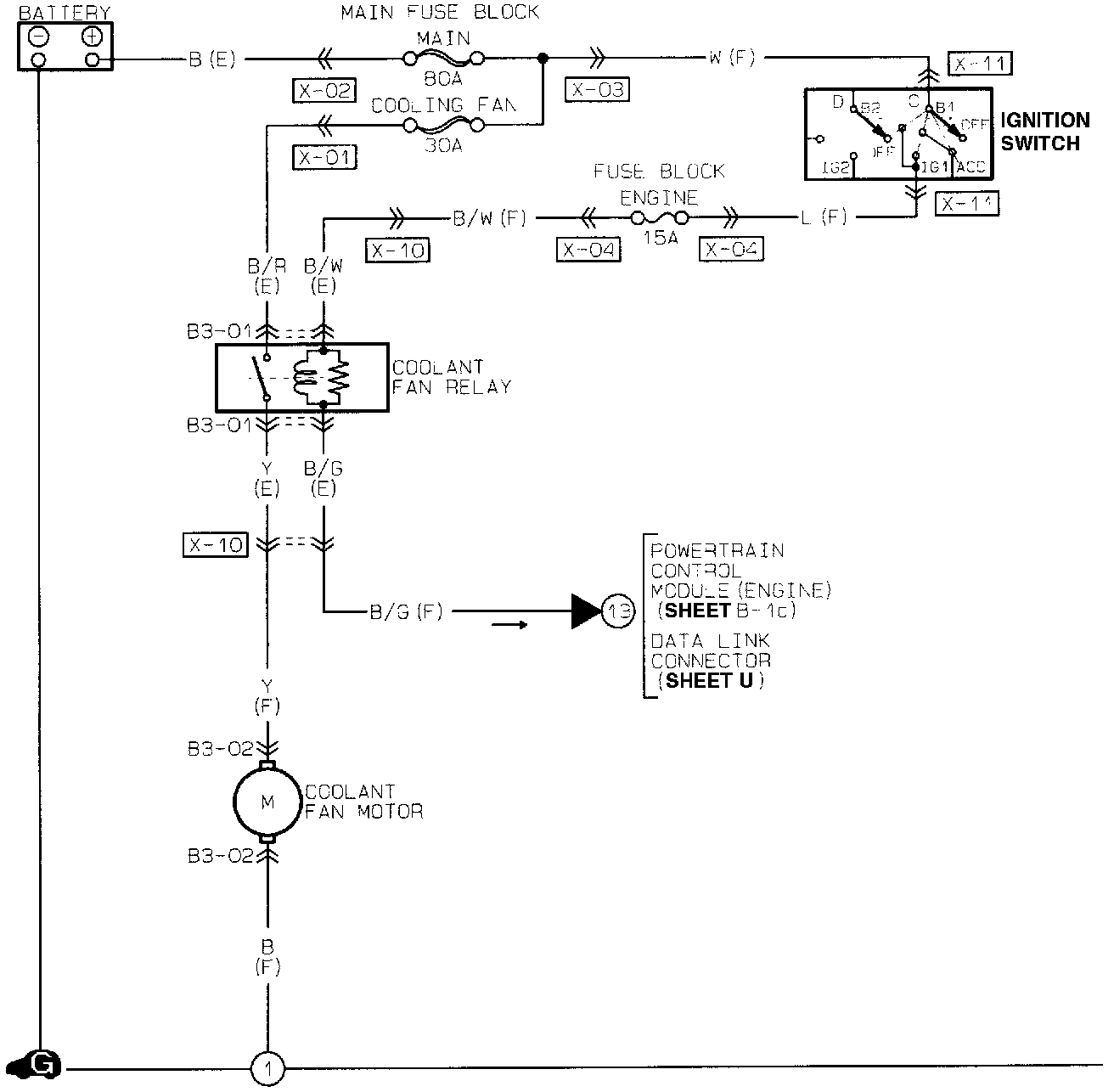

Coolant Fan System:
