Valve Relay

1. Disconnect battery ground cable.
2. Release valve relay locks from hydraulic unit, then remove valve relay.
3. Using ohmmeter, check continuity of relay terminals, Fig. 105 and 106.

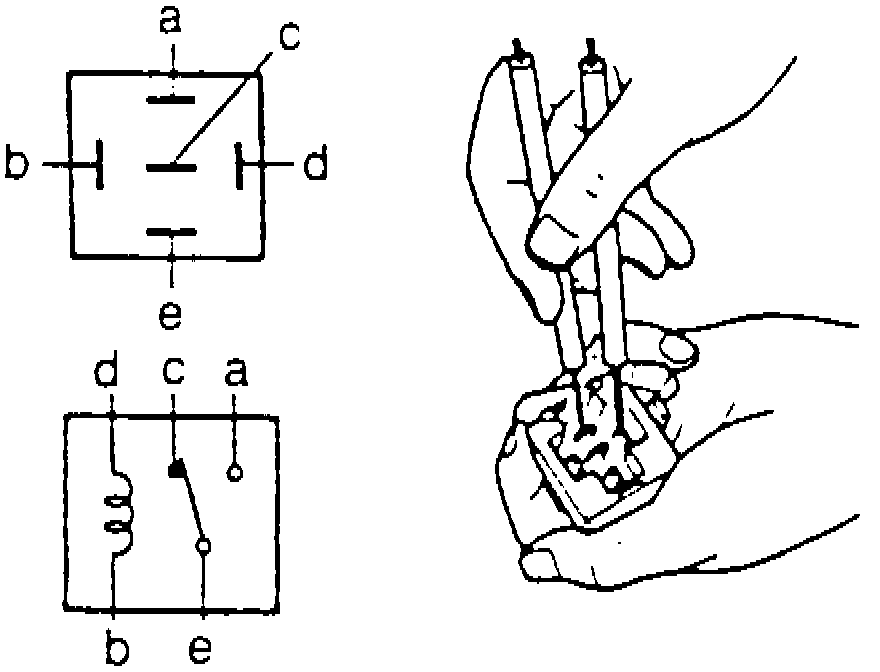

Fig. 105 Valve Relay Connector Pin Identification:

Fig. 106 Valve Relay Continuity Specifications:

4. If continuity is not as specified, replace valve relay.
