Home >> Mazda >> 1994 >> MX-3 V6-1844cc 1.8L DOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations >> Connector Locations >> H-2

H-2

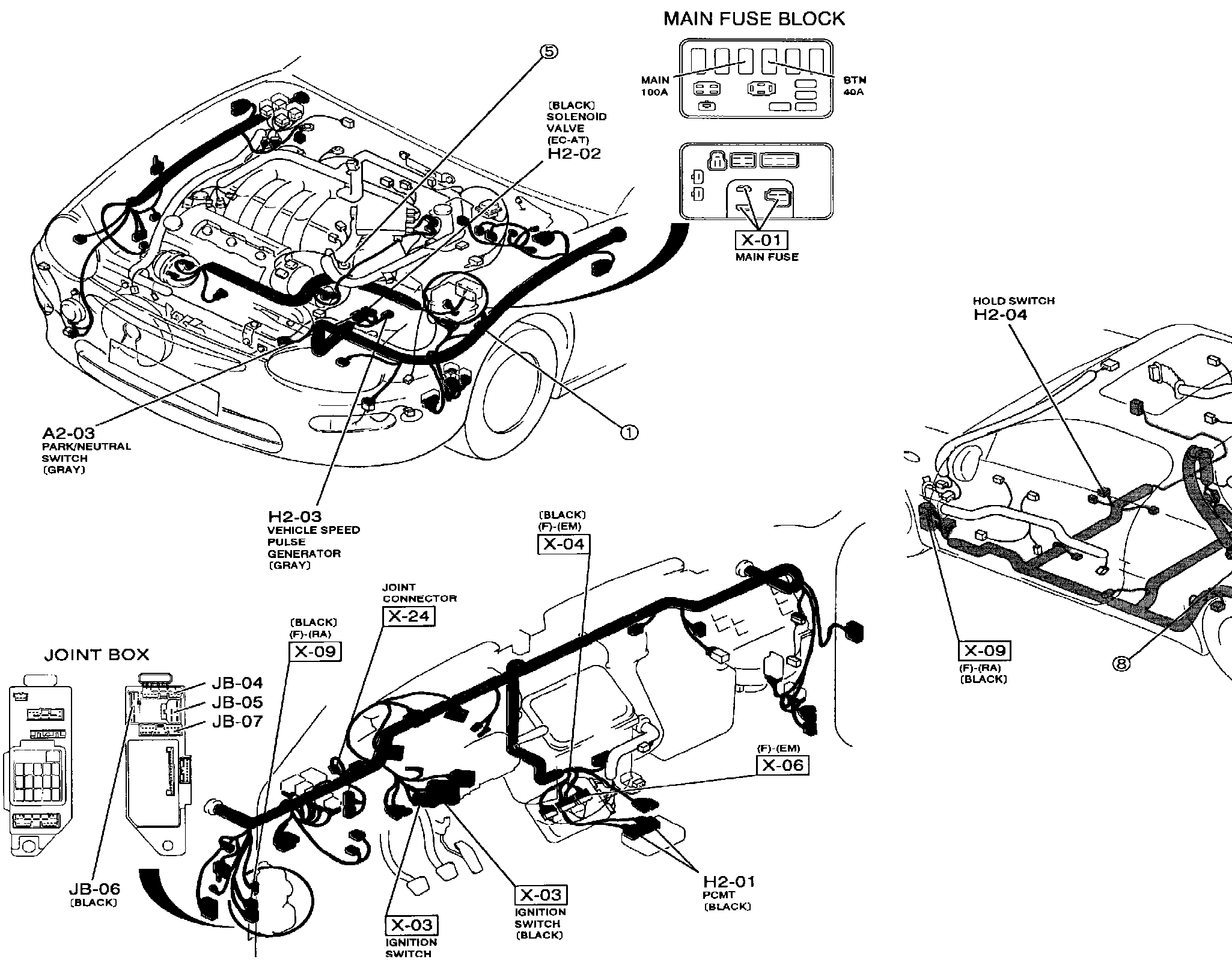

~D�NConnector Locations:
