Variable Induction Control Actuator: Testing and Inspection

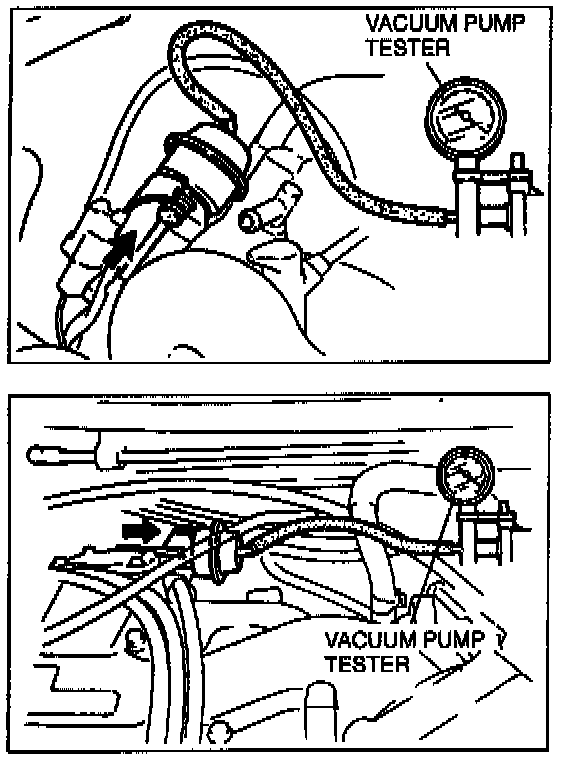

View: Testing Shutter Valve Actuators No.1 & No.2:

SHUTTER VALVE ACTUATORS NO.1 & NO.2
1. Disconnect vacuum hose from actuator No.1.
2. Connect vacuum pump tester to actuator.
3. Apply vacuum and verify that rod is pulled into actuator.
4. Repeat procedure for actuator No.2.
