Fuel Pressure Regulator: Service and Repair

WARNING: Release fuel pressure. Fuel line spills and leaks are dangerous. Fuel can ignite and cause serious injuries or death and damage. Fuel can also irritate skin and eyes. To prevent this, always complete the "Fuel Line Safety Procedures".
Technician Safety Information

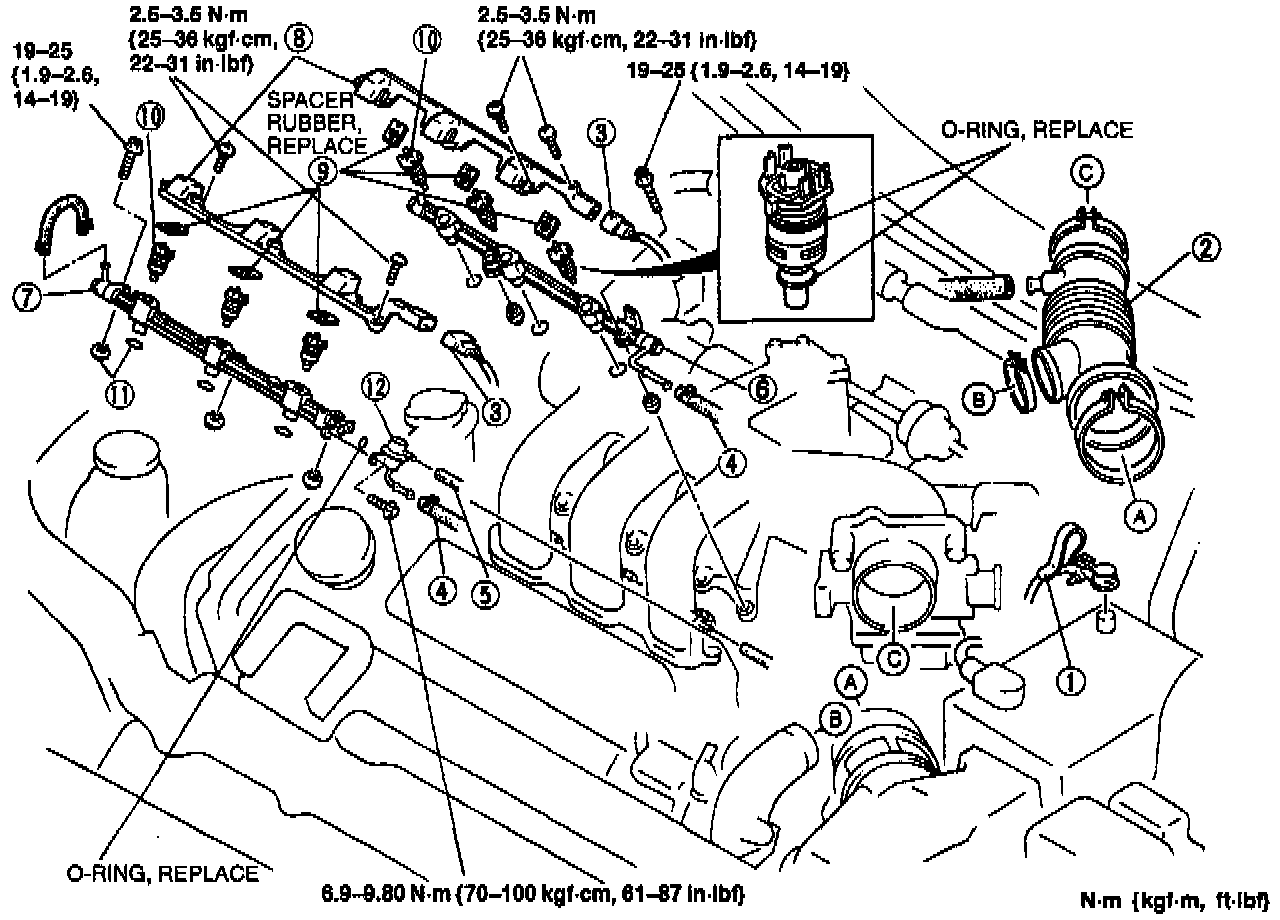

View: Fuel Supply Components:

NOTE: Refer to image for service reference.
Item No.12 Pressure regulator.

View: Pressure Regulator:

REMOVAL
1. Disconnect the vacuum hose.
2. Disconnect the fuel hose.
3. Remove the pressure regulator.

INSTALLATION
1. Install in the reverse order of removal.
2. Use a new O-ring.
3. Tighten bolts to specification.

Bolt Torque: 6.9 - 9.8 Nm (61 - 87 in.lb.)

4. Verify no leaks exist.
