Resistance Check

NOTE: It is not necessary to remove injectors to perform this test.

View: Injector Connectors:

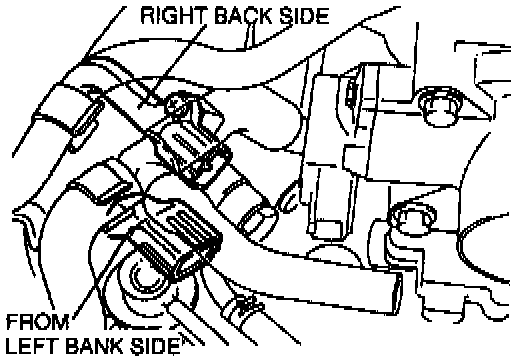

1. Unplug injector connectors as shown.

View: Fuel Injector Resistance Test:

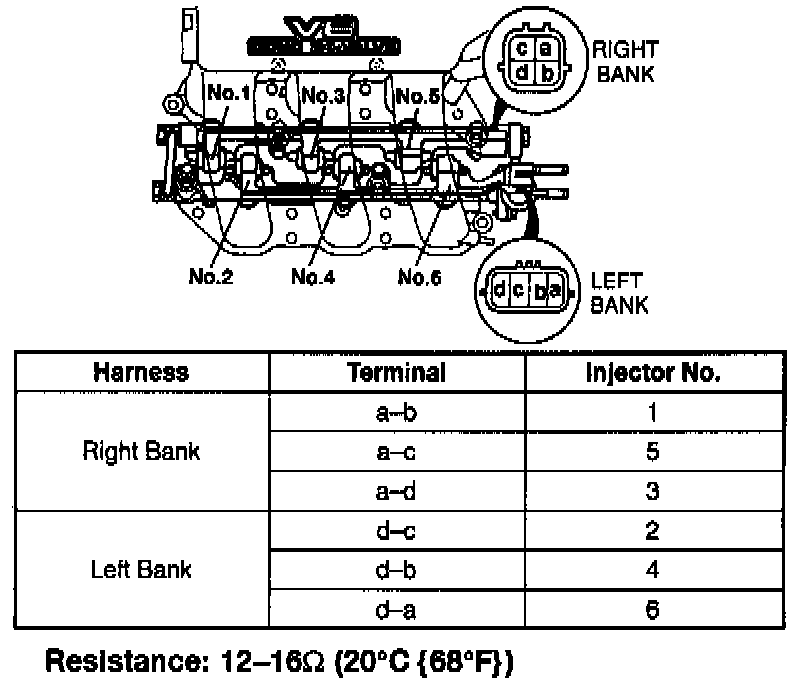

2. Measure resistance of fuel injectors between terminals shown on image chart.

Fuel injector resistance: 12 - 16 Ohms @ 20°C (68°F).

3. If not as specified, check for poor connections and check harness continuity.
4. If harness is okay, replace injector(s).
