Exploded Views

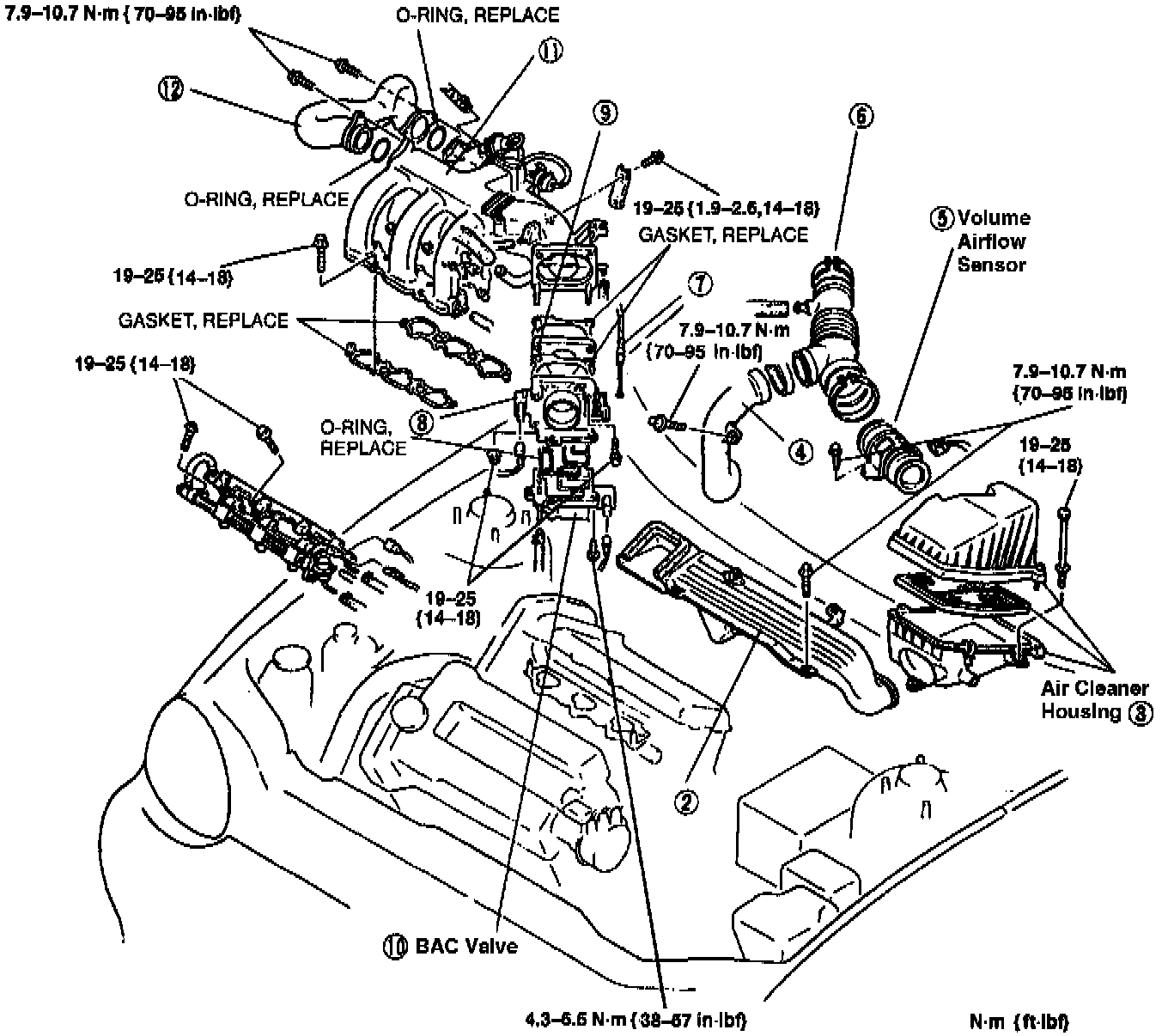

View: Intake Air System Components:

2. Fresh-air duct
3. Air cleaner housing
4. Resonance duct
5. Volume airflow sensor
6. Air intake hose
7. Accelerator cable
8. Throttle body
9. Spacer
10. By-pass air control (BAC) valve
11. Intake manifold
12. Air intake pipe
