With Automatic Transaxle (ATX)

View: Special Service Tools (SST)s:

PREPARATION

SYSTEM OPERATION

View: Tachometer Connections:

1. Connect a tachometer to the data link connector 10- terminal.

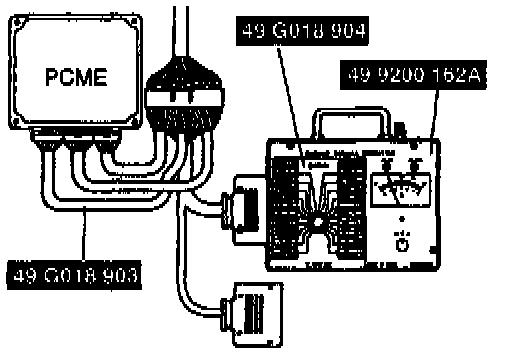

View: Special Service Tool (SST) Connections:

2. Connect the special service tools (SST)s (Engine Signal Monitor and Adapter) to the powertrain control module engine (PCME).
3. Warm-up the engine to normal operating temperature and run it at idle.

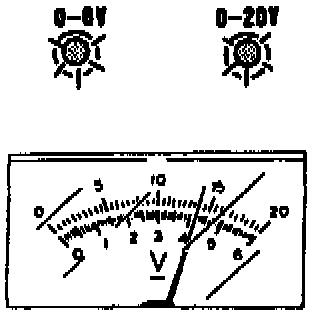

Lamps Should Flash Alternately:

4. Set the SST to terminals 3U through 3Z and make sure the green and red lamps flash alternately.
5. Increase the engine speed to 4,000 rpm; then suddenly release the throttle.

Watch The Red Indicator Lamp:

6. Verify that the red indicator lamp illuminates while the engine speed is above approximately 1,500 rpm on deceleration.
7. Increase the engine speed and verify that the maximum rpm does not exceed specification.

Specifications: Approx. 7,500 rpm

CAUTION: Holding the maximum rpm for more than 3 seconds can damage the engine.
